5  What’s in the way?

Once you’ve got the message clear in your plot, there can still be some clutter in the graphic.

To structure how to clean up your plot, we will talk about

Overview

Duration 49 minutes

Questions

  • How much of this plot is not data?
  • What do I do when there are too many points to see anything?
  • What is my summary hiding?

What you need this session

  • A session of RStudio open
  • Something to draw on, and something to draw with
  • The following packages installed
library(tidyverse)
library(naniar)
library(gghighlight)
library(ggridges)
library(ggrain)
pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )

5.1 Decoration

The idea: there is “ink” in every plot - the idea is we want to only keep the ink that is related to the data. This is sometimes referred to as the data:ink ratio

Here is where we left off in Chapter 4.

p_busy <- ggplot(pedestrian_hourly,
                 aes(x = hour,
                     y = mean_count,
                     colour = day_type)) +
        geom_line() +
        facet_wrap(vars(sensor_name))

p_busy

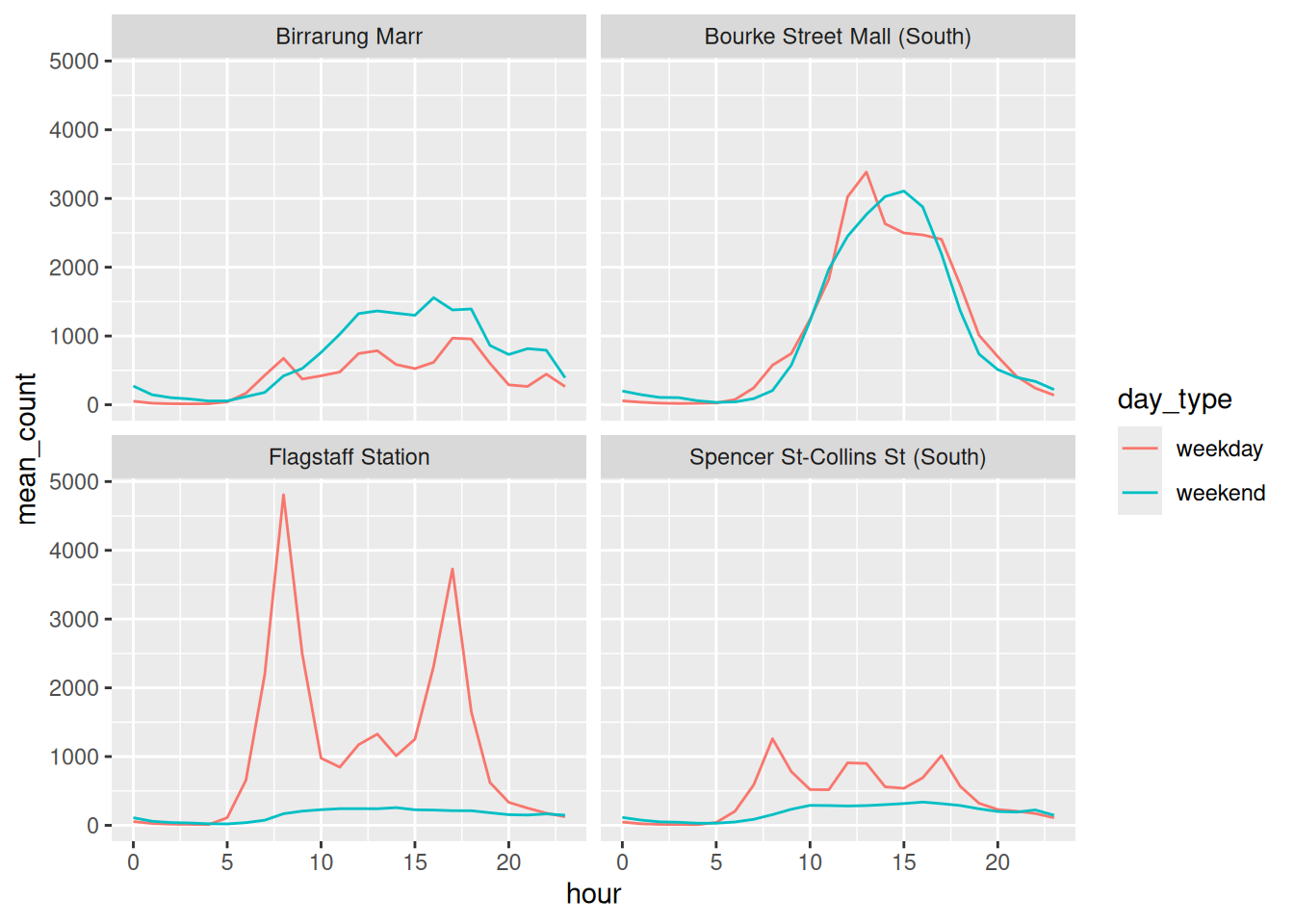

Four panels, one per sensor, each with a weekday and a weekend line, on ggplot2's default grey background with white gridlines and a legend on the right.
Figure 5.1

There are two lines per facet - these are representing the data. Not all of the ink on the plot is related to data. Edward Tufte called the useful fraction the data-ink ratio. Go through each piece and ask: is this helping, or is it just…here?

NoteYour Turn: Discuss the figure!

You could argue that some of these parts of ink that are not data are:

  • the grey panel background
  • the white gridlines, major and minor
  • the box around the legend
  • the legend title, which is a column name

Let’s walk through some ways to improve the data:ink ratio

p_busy
The four panel plot with ggplot2's default grey theme.
Figure 5.2
p_busy + theme_minimal()

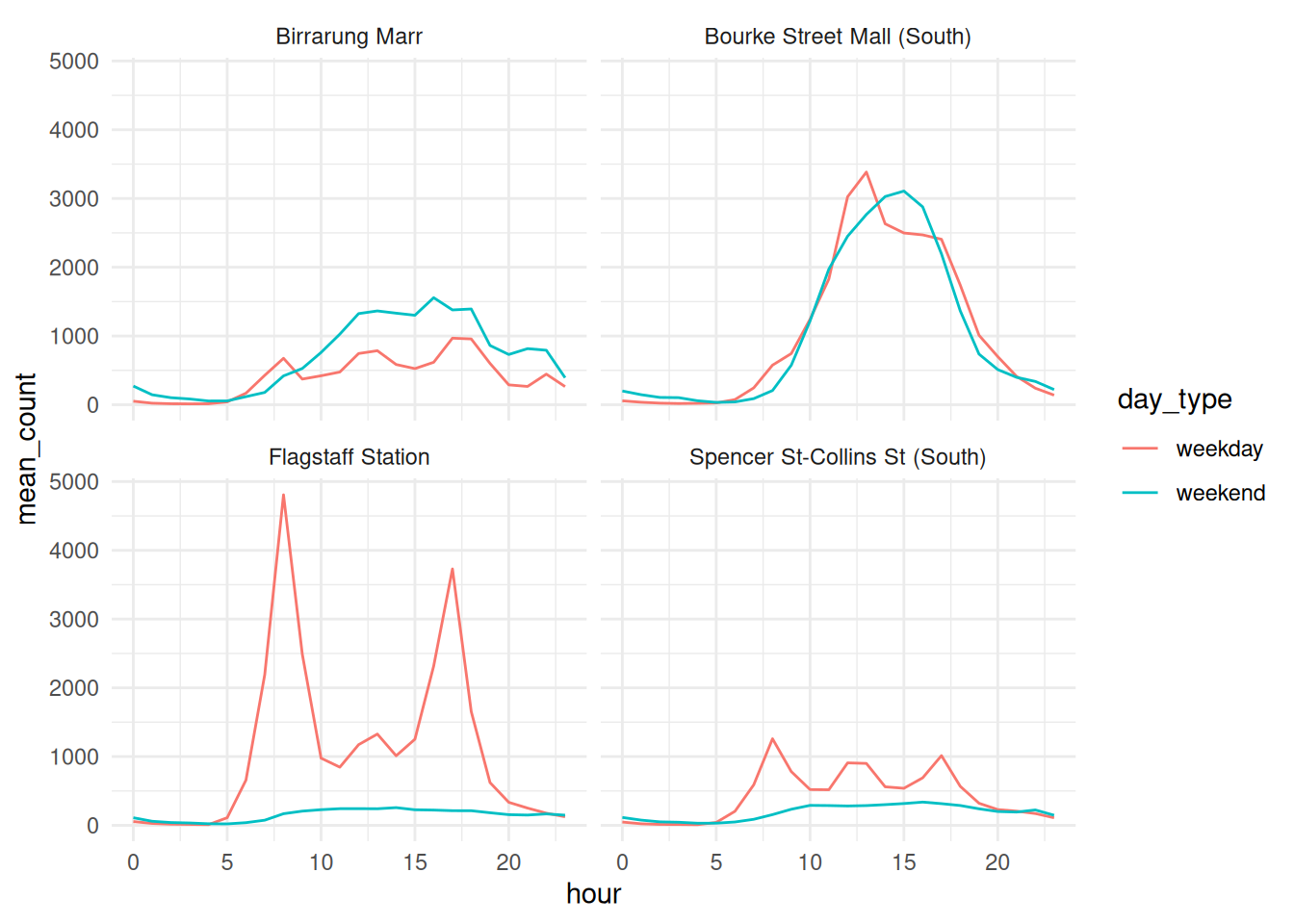

The same plot with a white background and light grey gridlines.
Figure 5.3
p_busy +
        theme_minimal() +
        theme(panel.grid.minor = element_blank())

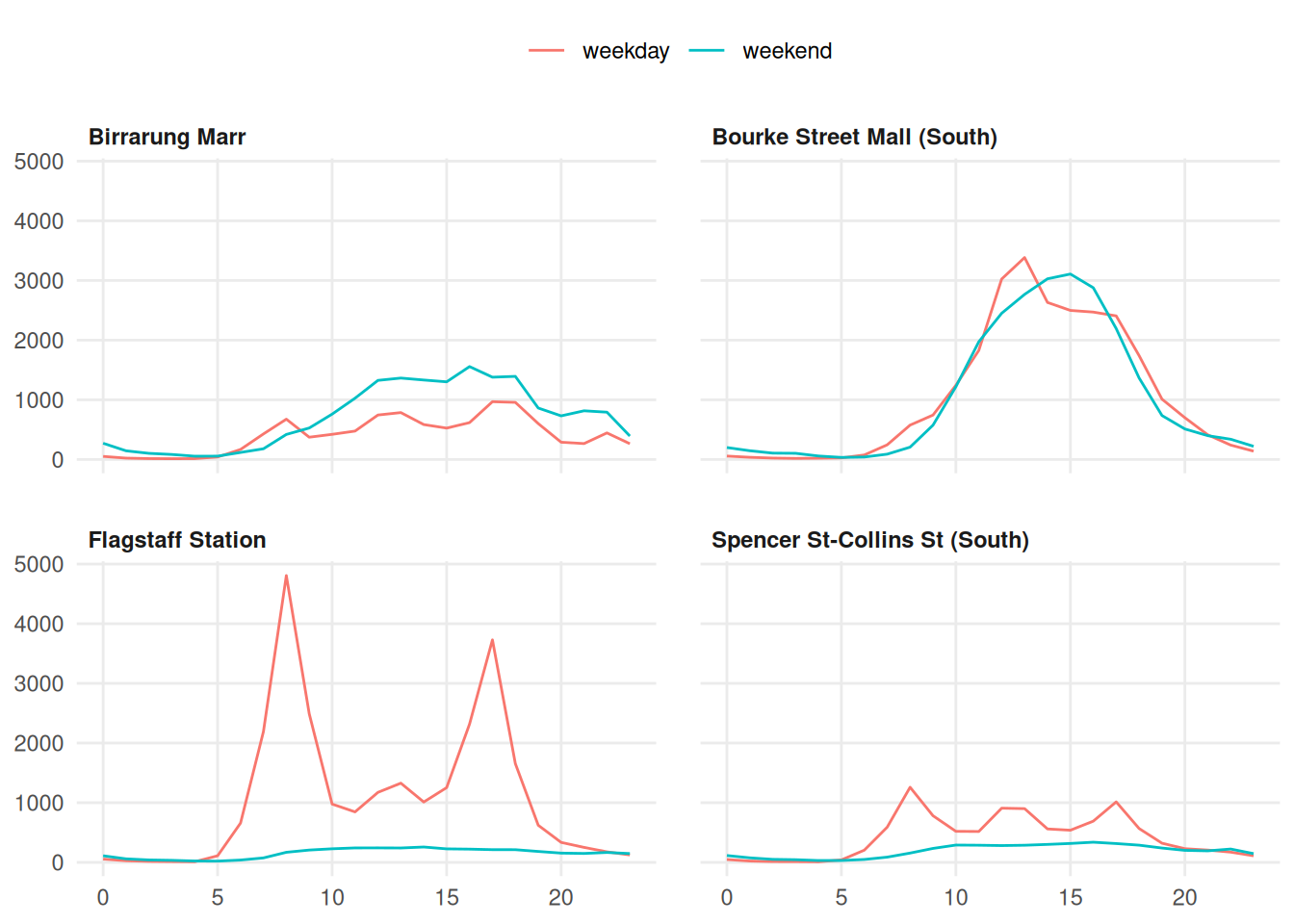

The same plot again with the minor gridlines removed.
Figure 5.4
p_busy +
        theme_minimal() +
        theme(panel.grid.minor = element_blank(),
              legend.position = "bottom")

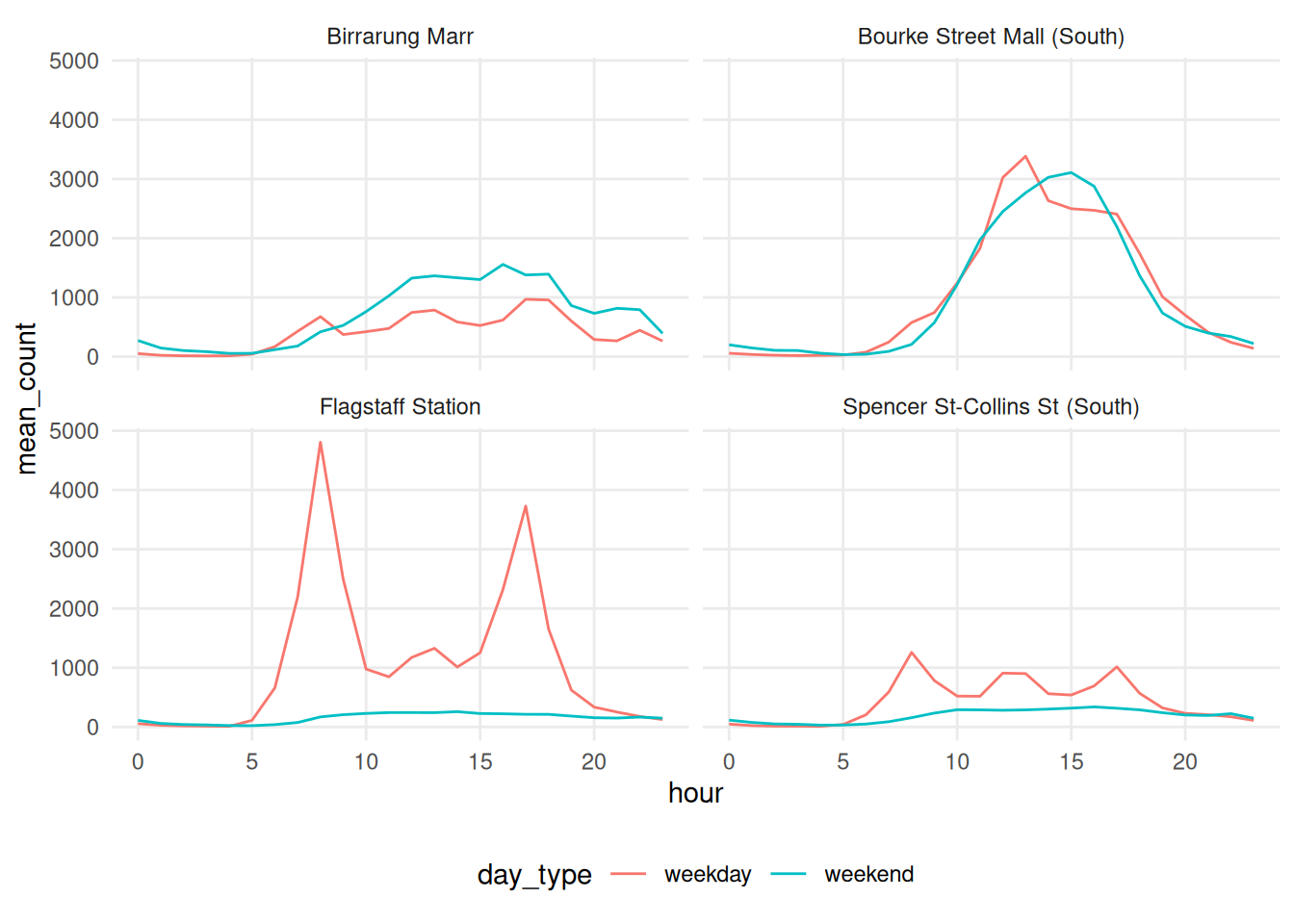

The same plot with the legend moved underneath, giving the panels more width.
Figure 5.5

Each step removed something, but the message was kept. We got some more real estate back for the plots too, by moving the legend.

Colour is ink

Colour counts as ink, and it is sometimes where people double up

ggplot(pedestrian,
       aes(x = hourly_counts,
           y = sensor_name,
           fill = sensor_name)) +
        geom_boxplot()

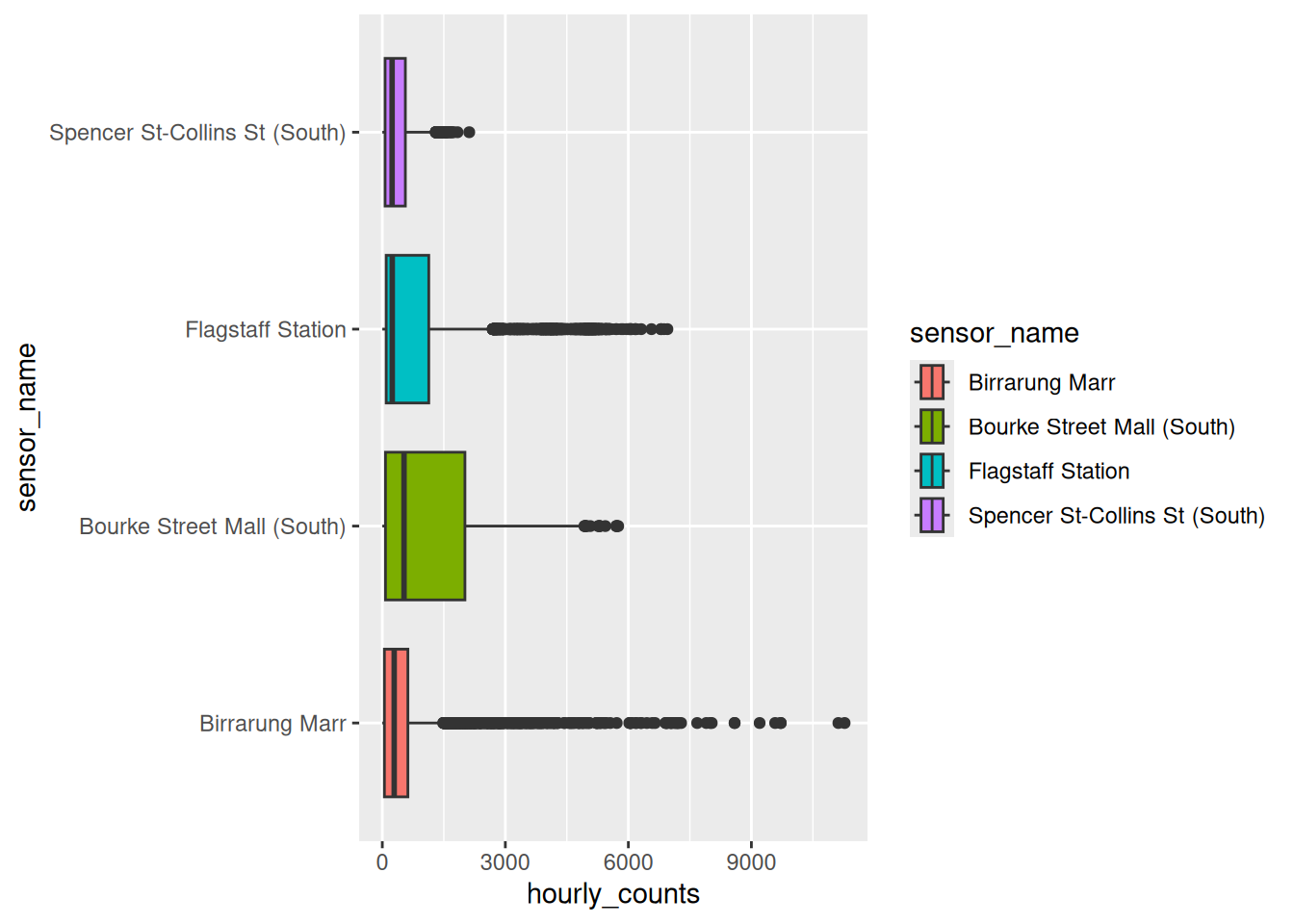

Four boxplots, each filled with a different colour, with a legend on the right repeating the sensor names already on the x axis.
Figure 5.6

The x axis already says which sensor is which. The fill says it again, and then a legend says it a third time.

ggplot(pedestrian,
       aes(x = hourly_counts,
           y = sensor_name)) +
        geom_boxplot()

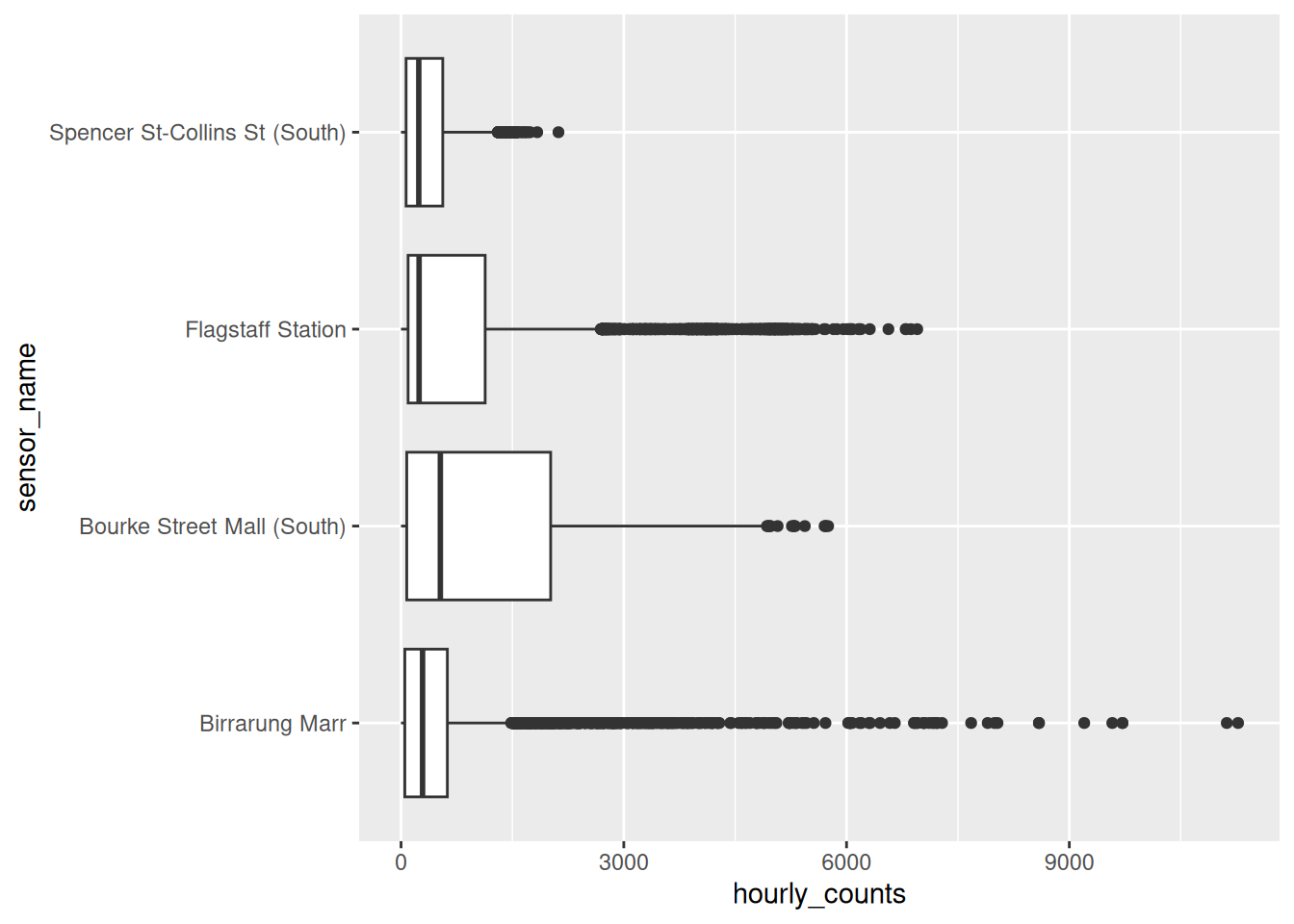

The same four boxplots in plain grey, with no legend, and the sensor names still labelled on the x axis.
Figure 5.7

We have the same message, but with less ink, and the plot got wider because there isn’t a legend.

We want to use colour carefully - if the position (x or y axis) is already carrying that information, we probably don’t need it. Even if it looks nice!

We can push this to the limit, and you might end up with something a bit more abstract: no gridlines, no axis, no legend.

Gridlines are not data, but they are how a reader gets a number off an axis.

If you delete them, you can make the plot cleaner, but less useful.

So remember, the question is not so much: “how much can I remove”, but “what is this piece for” - if you say what each piece is for, that usually means you can keep it.

NoteYour Turn
library(tidyverse)
library(naniar)
library(gghighlight)
library(ggridges)
library(ggrain)
pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )
p_busy <- ggplot(pedestrian_hourly,
                 aes(x = hour,
                     y = mean_count,
                     colour = day_type)) +
        geom_line() +
        facet_wrap(vars(sensor_name))

p_busy

  1. Run p_busy + theme_void(). What did you lose, and would you ever want that?

  2. Try each of these and pick one you’d keep:

p_busy + theme_bw()
p_busy + theme_classic()
p_busy + theme_light()
p_busy + theme_dark()
p_busy + theme_linedraw()

Only open this if you’ve actually had a go.

1. theme_void() removes the axes too, so you can no longer read a value off the plot. Useful for maps, and for sparklines where the shape is the whole message. Rarely anything else.

“Decoration” Take aways

  • Removing non-data ink is cheap, it usually helps
  • Colour is ink. Soemtimes the message doesn’t change if you drop it.
  • Data-ink is a direction, not a score. Gridlines usually have a job

5.2 Density

The idea: if there are more points than pixels, the plot can lose its interpretation and become more of a blob.

Everything above was 192 summarised rows. Here is the raw data, all 37,700.

pedestrian
# A tibble: 37,700 × 9
   hourly_counts date_time            year month   month_day week_day  hour
           <int> <dttm>              <int> <ord>       <int> <ord>    <int>
 1           883 2016-01-01 00:00:00  2016 January         1 Friday       0
 2           597 2016-01-01 01:00:00  2016 January         1 Friday       1
 3           294 2016-01-01 02:00:00  2016 January         1 Friday       2
 4           183 2016-01-01 03:00:00  2016 January         1 Friday       3
 5           118 2016-01-01 04:00:00  2016 January         1 Friday       4
 6            68 2016-01-01 05:00:00  2016 January         1 Friday       5
 7            47 2016-01-01 06:00:00  2016 January         1 Friday       6
 8            52 2016-01-01 07:00:00  2016 January         1 Friday       7
 9           120 2016-01-01 08:00:00  2016 January         1 Friday       8
10           333 2016-01-01 09:00:00  2016 January         1 Friday       9
# ℹ 37,690 more rows
# ℹ 2 more variables: sensor_id <int>, sensor_name <chr>

And a plot of this

ggplot(pedestrian,
       aes(x = hour,
           y = hourly_counts)) +
        geom_point()

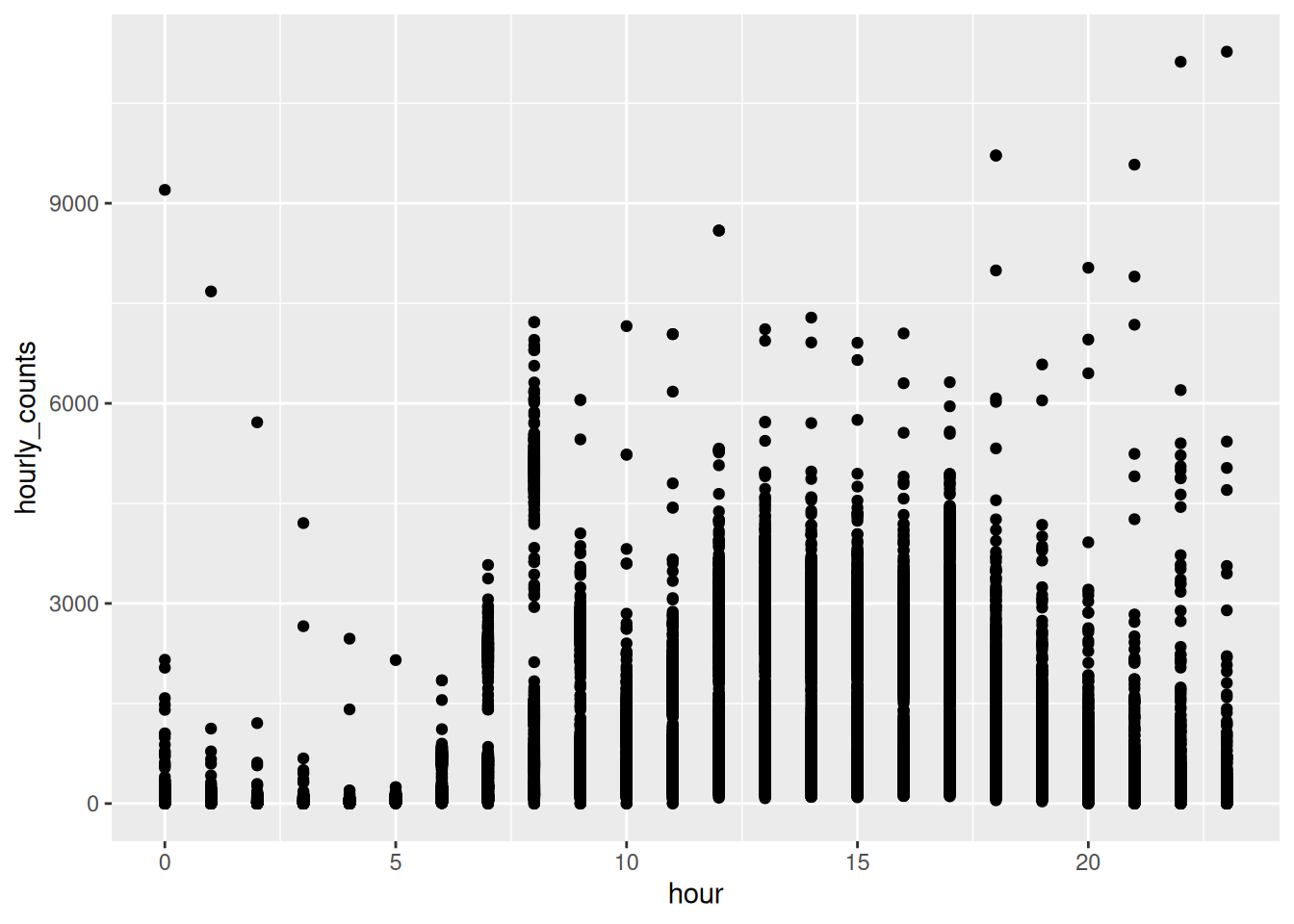

A scatterplot of pedestrian count against hour, drawn as solid black columns of points with no visible structure.
Figure 5.8

It’s hard to say how many points there are, since they are overlapping.

When I encounter this, I usually use one of the these three steps:

  • alpha - transparency: overlapping points get darker
  • geom_jitter() - spread points sharing an x/y value
  • a geom that summarises, once there are too many for either to help
ggplot(pedestrian,
       aes(x = hour,
           y = hourly_counts)) +
        geom_point(alpha = 0.05)

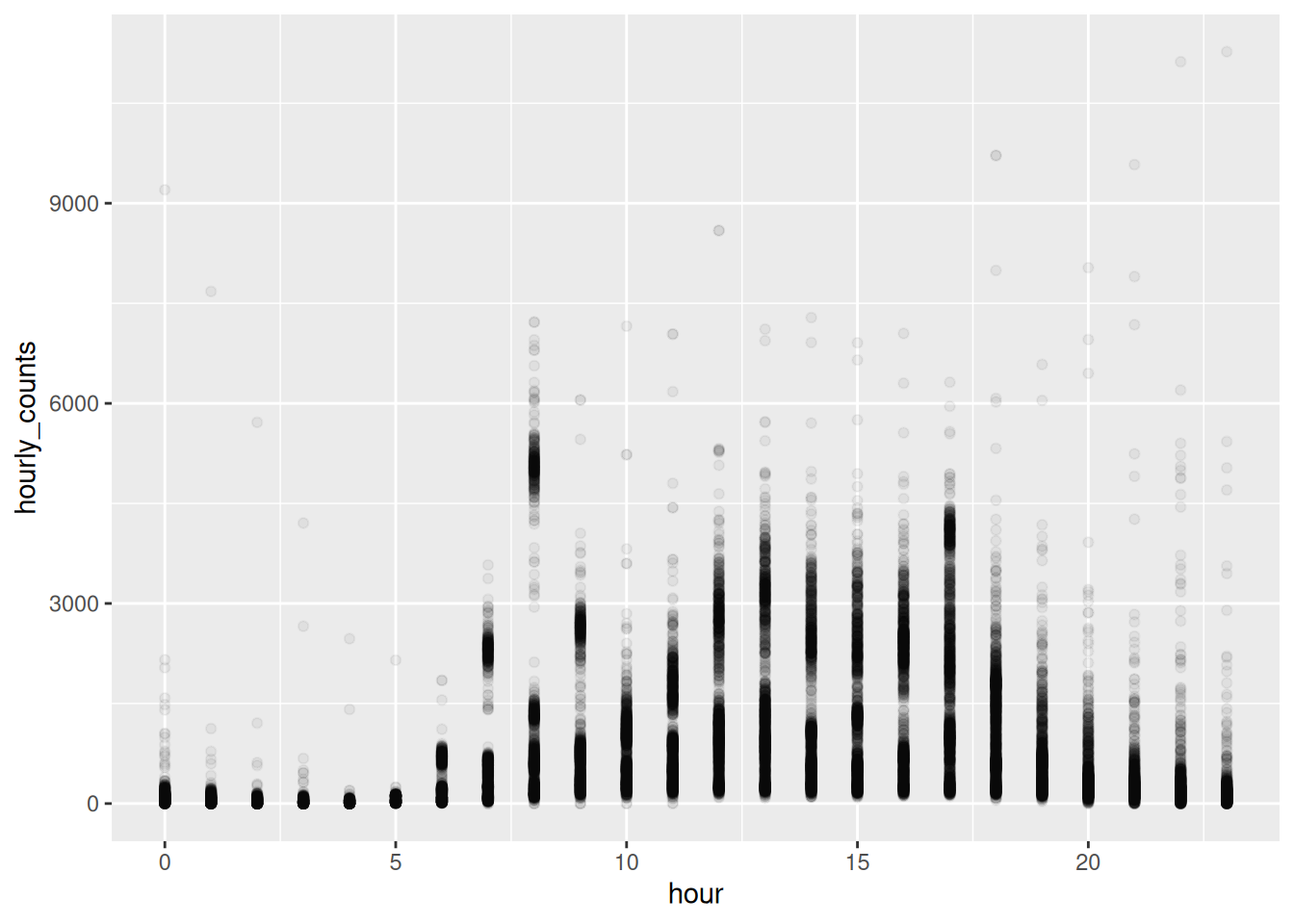

The same scatterplot with very transparent points, so denser regions appear darker and the daily shape emerges.
Figure 5.9

hour is a whole number, so every point in a column sits at the same x and we are still stacking them. geom_jitter() spreads them sideways - you can control how much sideways with width:

ggplot(pedestrian,
       aes(x = hour,
           y = hourly_counts)) +
        geom_jitter(alpha = 0.05, width = 0.3)

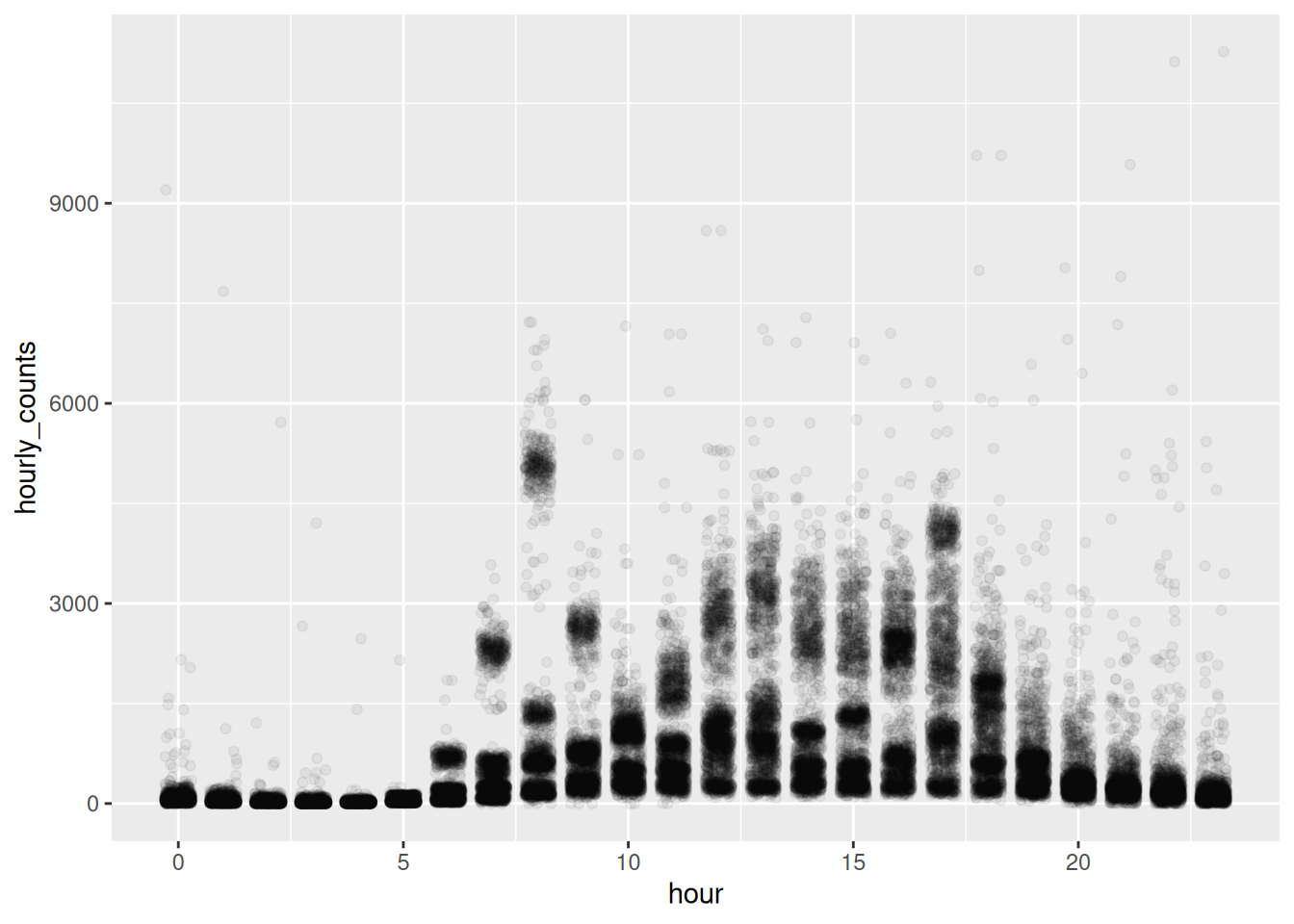

The same data jittered horizontally, so each hour becomes a cloud rather than a line of points.
Figure 5.10

Even jittered, you are still asking the reader to judge density by eye. Put a summary on top, like a box plot (made transparent!), and it makes it a bit easier.

ggplot(pedestrian,
       aes(x = factor(hour),
           y = hourly_counts)) +
        geom_jitter(alpha = 0.02, width = 0.2) +
        geom_boxplot(outlier.shape = NA, fill = NA)

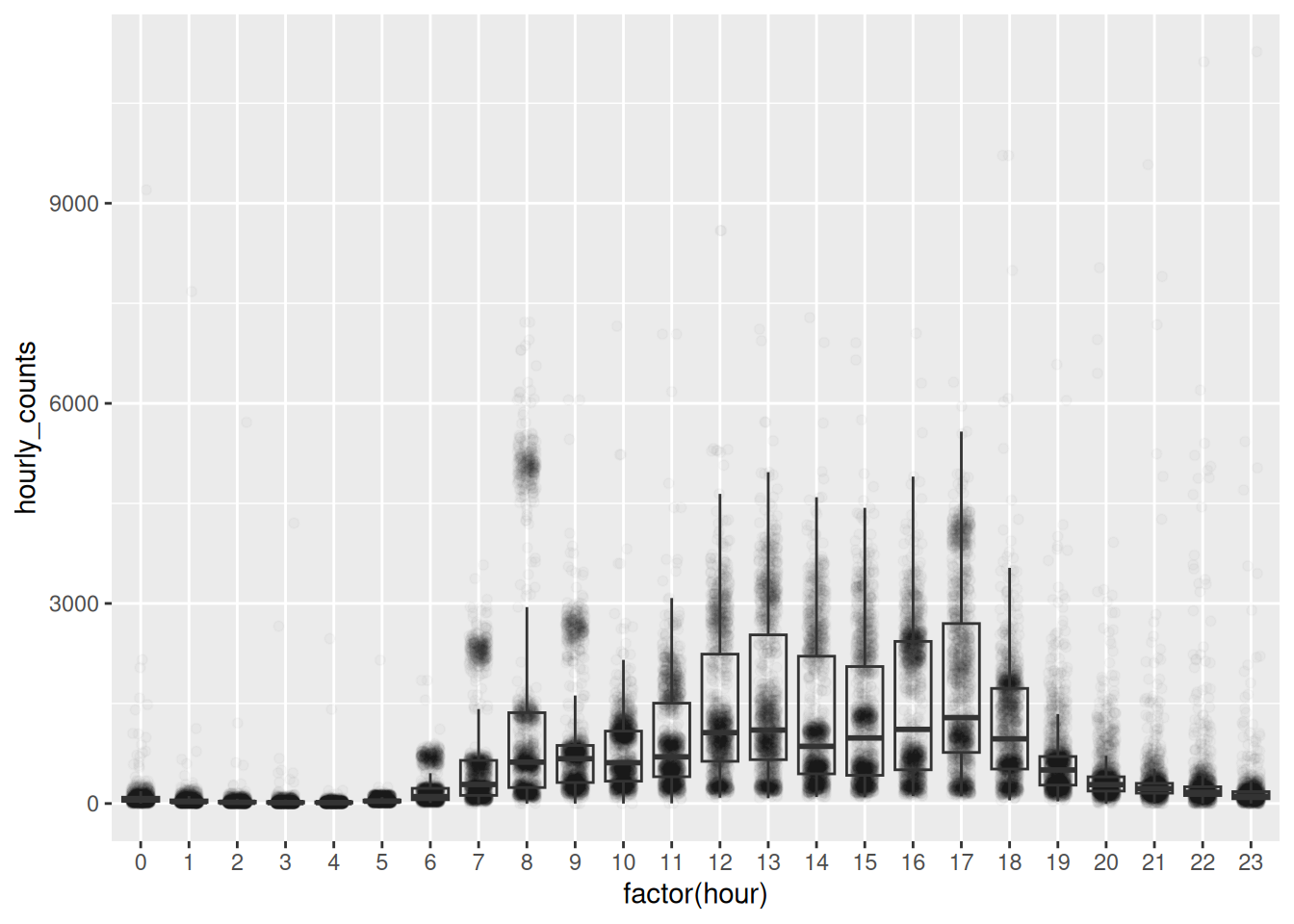

Jittered points for each hour with a boxplot drawn over the top, so the median and quartiles sit inside the cloud of raw readings.
Figure 5.11

The boxplot gives the eye something to anchor on, and the points behind it show whether the box deserves to be believed.

When there really are too many points for jitter and alpha, hand the problem to a geom that counts. geom_hex() bins in two dimensions and colours each bin by how many landed in it. It’s Chapter 3’s binning with one more axis.

ggplot(pedestrian,
       aes(x = hour,
           y = hourly_counts)) +
        geom_hex(bins = 30)
A hexagonal binned plot of the same data, with colour showing how many readings fall in each hexagon.
Figure 5.12

Density becomes something you read off a legend rather than guess from how black the page looks. geom_bin2d() does the same with squares.

Same trade as geom_rug() in Chapter 3: a rug worked on 397 points and would be a smear on 35,152.

The other kind of crowding is too many lines rather than too many points. gghighlight(), from the gghighlight package, keeps one and greys the rest.

pedestrian_hourly |>
        filter(day_type == "weekday") |>
        ggplot(aes(x = hour,
                   y = mean_count,
                   colour = sensor_name)) +
        geom_line() +
        gghighlight(sensor_name == "Flagstaff Station")

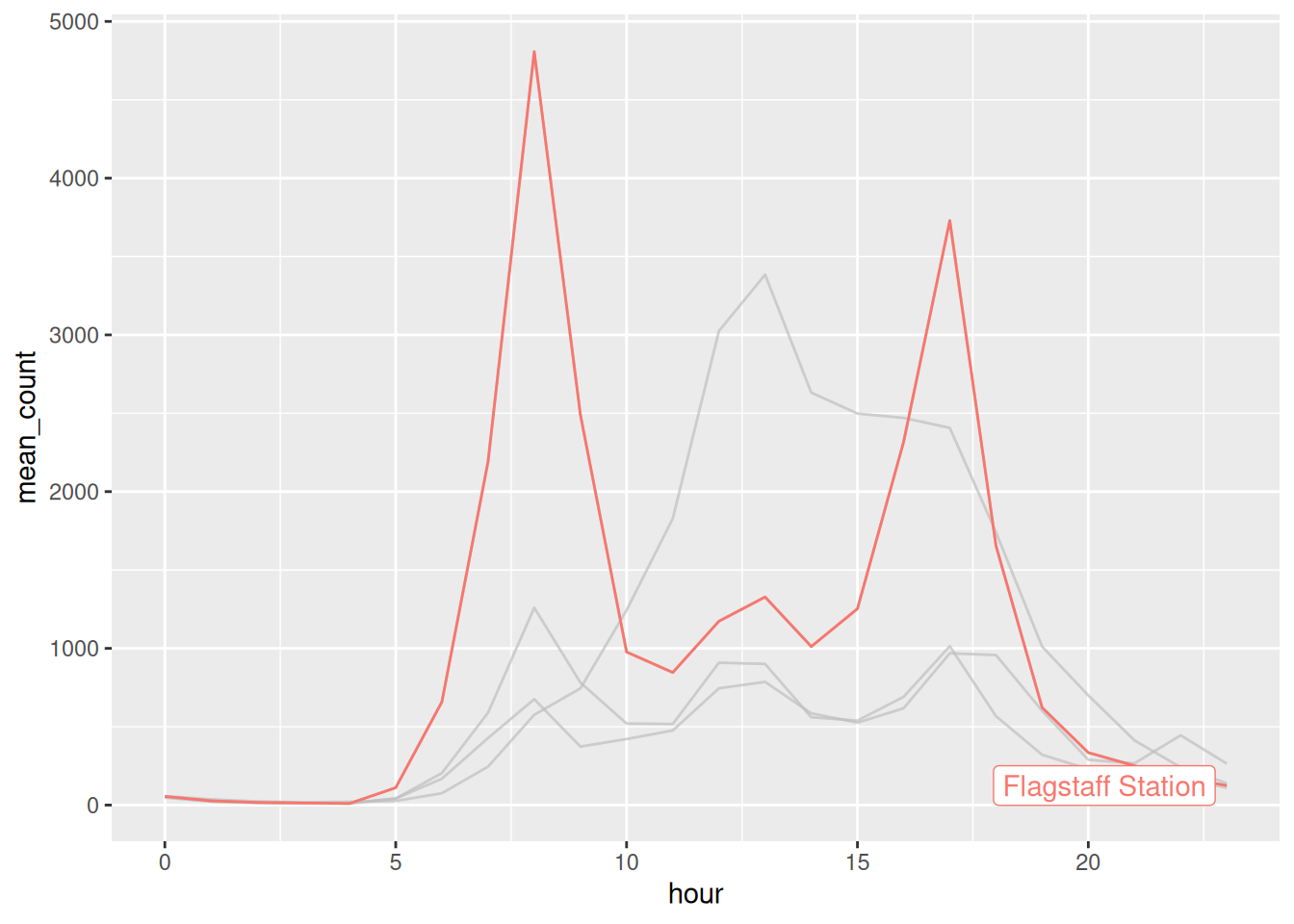

Weekday foot traffic for four sensors, with Flagstaff Station in colour and the other three greyed out behind it.
Figure 5.13

Note the filter(). pedestrian_hourly holds a weekday and a weekend row for every hour, so colouring by sensor alone gives each line two values at every hour and it sawtooths straight away, exactly as in Chapter 2. Either filter to one kind of day, or add linetype = day_type so ggplot2 knows there are eight groups and not four.

There’s more on this in the Summary section below, where it turns out to be the same trick as drawing your whole dataset in grey behind a facet. We come back to it as a design principle in Chapter 6.

NoteYour Turn
library(tidyverse)
library(naniar)
library(gghighlight)
library(ggridges)
library(ggrain)

  1. Try alpha = 0.01, then alpha = 0.3. Which lets you see the shape?

  2. Change the jitter width:

ggplot(pedestrian,
       aes(x = factor(hour),
           y = hourly_counts)) +
        geom_jitter(alpha = 0.02, width = ___) +
        geom_boxplot(outlier.shape = NA, fill = NA)

Try 0.1, then 0.5. At what point does the jitter start lying to you?

  1. Take the boxplot off and put it back. Which version would you send to somebody, and which would you use to check your own work?

Only open this if you’ve actually had a go.

1. At 0.01 almost everything vanishes. At 0.3 the busy hours saturate to solid black and you’re back where you started. Around 0.05 works here, and the right number depends on how many points you have.

2. At 0.5 the points from one hour spill into the next, so a reading at 8am appears to sit at 8:30. Around 0.2 is honest here.

3. I’d send the boxplot. I’d check my own work with the points, because that’s where you find out the box is describing a middle nothing is near.

Takeaways

  • alpha first
  • geom_jitter() for ties/overlaps, beware it moves your data
  • Use a summary over top so readers have something to anchor on
  • If more points than pixels, reach for a geom that summarises

5.3 Summary

The idea: a summary shows some shape of your data. But, when the shape is wrong, the summary is confidently wrong.

Let’s show four sensors as boxplots.

ggplot(pedestrian,
       aes(x = sensor_name,
           y = hourly_counts)) +
        geom_boxplot()

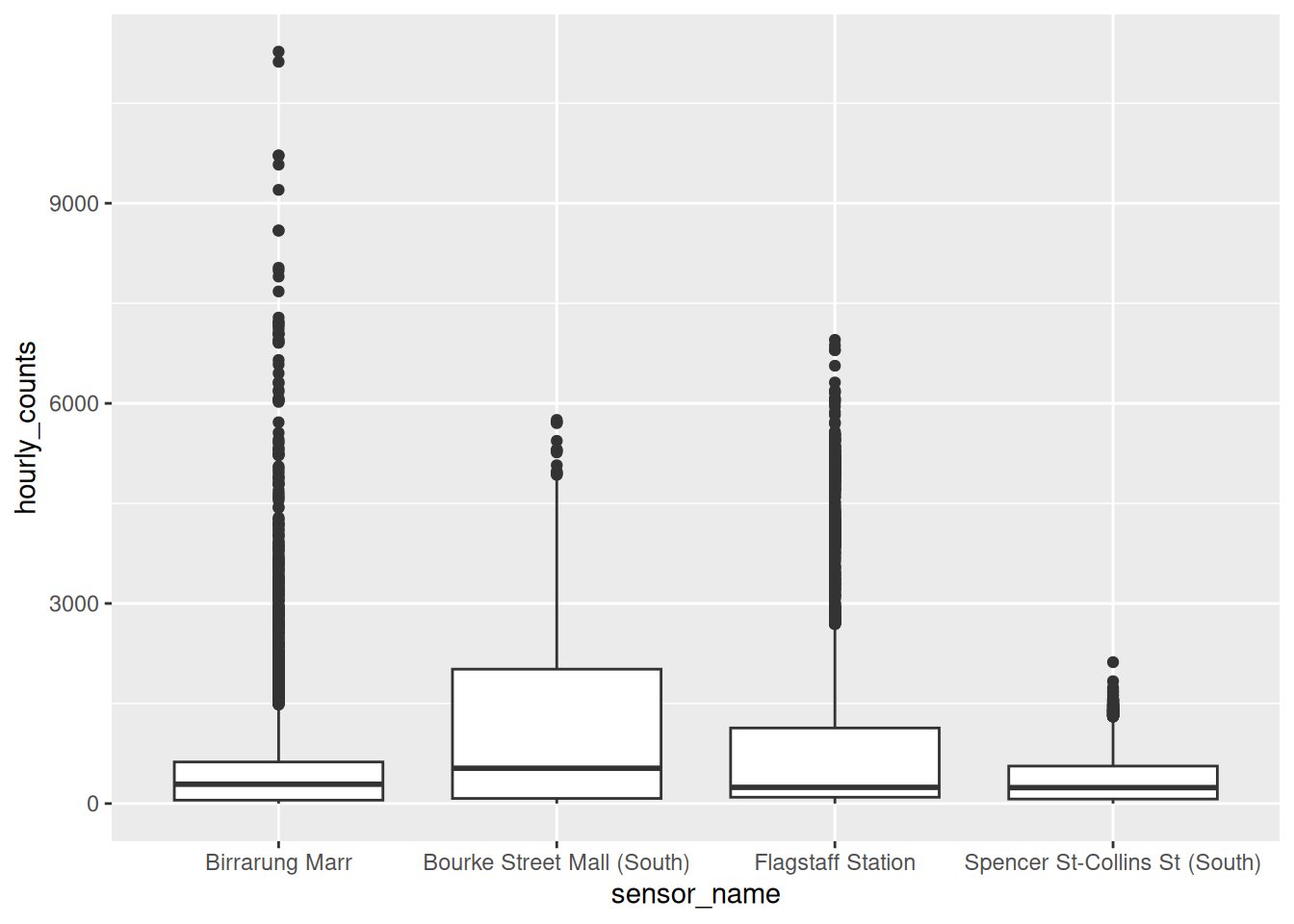

Four boxplots, one per sensor. Each box is squashed near the bottom of the range with a long column of outlier dots above it.
Figure 5.14

Look at the dots above the whiskers. ggplot2 is calling those outliers:

pedestrian |>
        group_by(sensor_name) |>
        filter(hourly_counts >
                       quantile(hourly_counts, 0.75, na.rm = TRUE) +
                       1.5 * IQR(hourly_counts, na.rm = TRUE)) |>
        count(sensor_name)
# A tibble: 4 × 2
# Groups:   sensor_name [4]
  sensor_name                       n
  <chr>                         <int>
1 Birrarung Marr                  474
2 Bourke Street Mall (South)       15
3 Flagstaff Station               663
4 Spencer St-Collins St (South)   142

Flagstaff has over 600 outliers!

We know why from Chapter 3: 8am at Flagstaff is two mornings, not one. A boxplot assumes one lump. When there are two (bimodal!), it describes a middle that nothing is near and flags the real story as anomalous.

Show the data on top of the summary

A violin keeps the shape, using a density. Layering the points on top keeps the evidence.

ggplot(pedestrian,
       aes(x = sensor_name,
           y = hourly_counts)) +
        geom_violin() +
        geom_jitter(alpha = 0.02, width = 0.15)

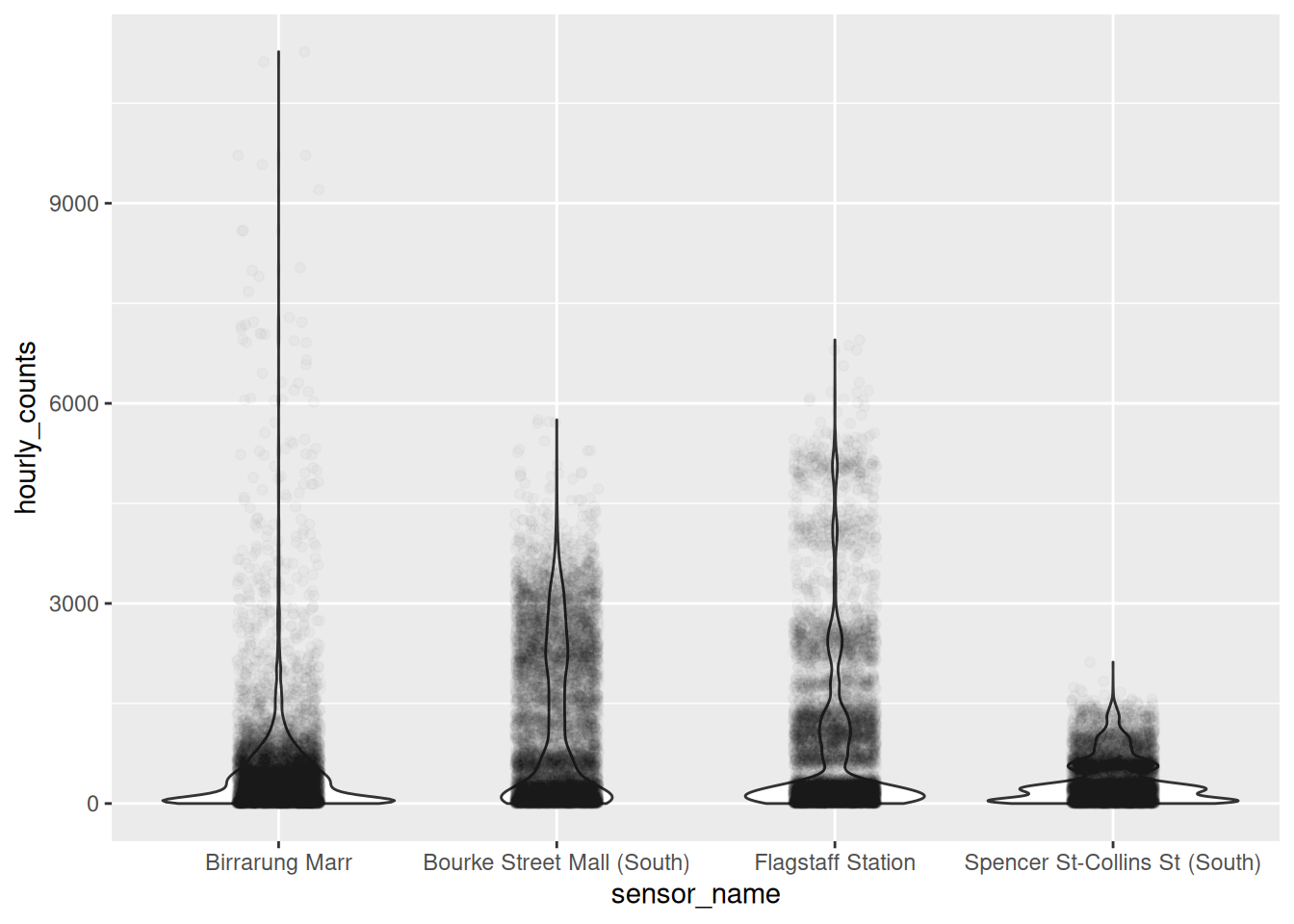

Four violin plots with the raw readings jittered over the top, so both the estimated shape and the actual points are visible.
Figure 5.15

Two layers, and now the summary has its working shown. Flagstaff’s second population is a bulge in the violin and a band of real points.

geom_rain(), from the ggrain package, does all three at once: a boxplot, a half violin, and the points.

ggplot(pedestrian,
       aes(x = sensor_name,
           y = hourly_counts)) +
        geom_rain(alpha = 0.02)

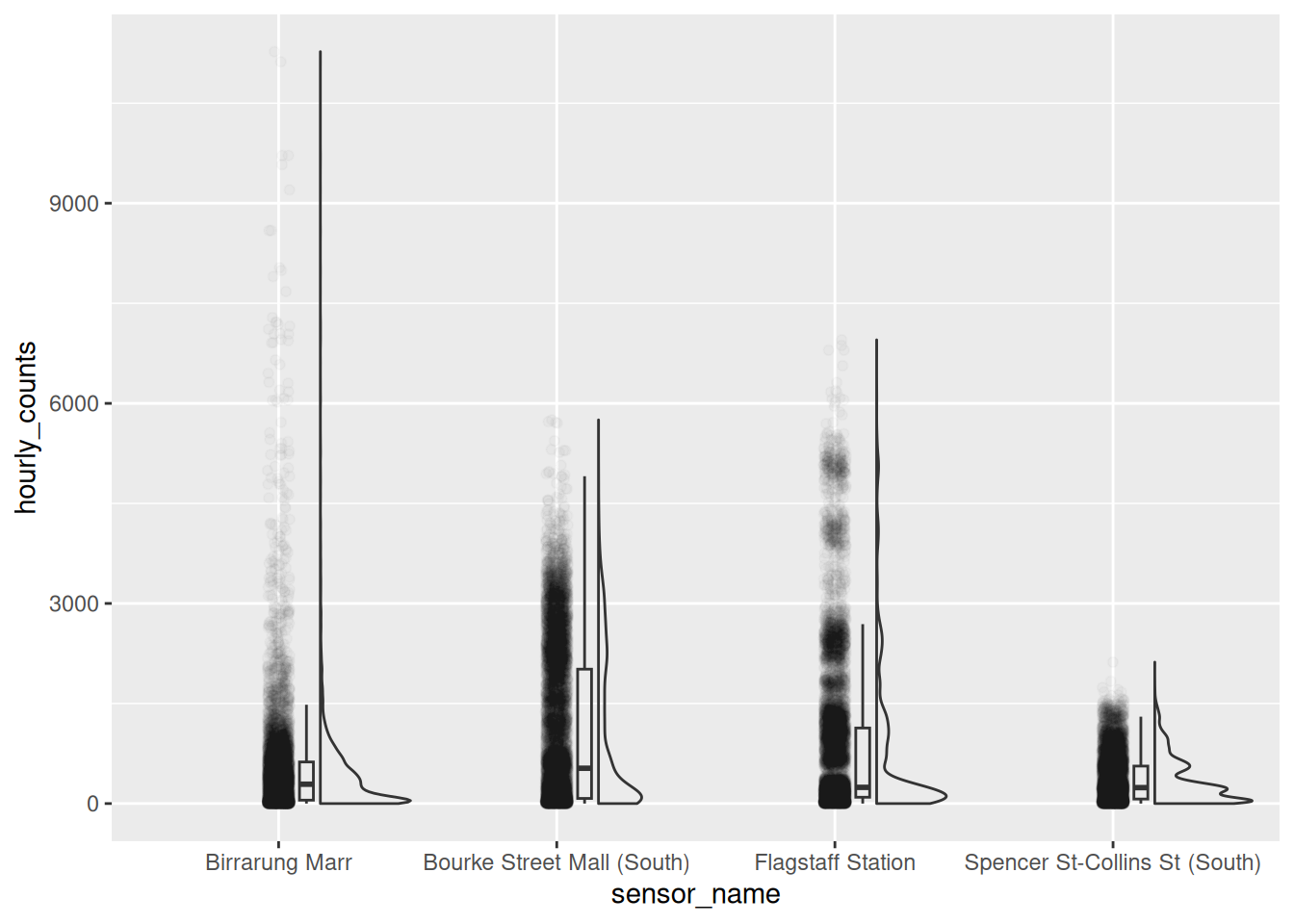

A raincloud plot for each sensor: a half violin, a boxplot, and the raw points scattered below.
Figure 5.16

Ridgelines

When you have a lot of groups, stack the distributions instead of standing them up side by side. geom_density_ridges() comes from the ggridges package, by Claus Wilke.

pedestrian |>
        filter(sensor_name == "Flagstaff Station") |>
        ggplot(aes(x = hourly_counts,
                   y = factor(hour))) +
        geom_density_ridges()

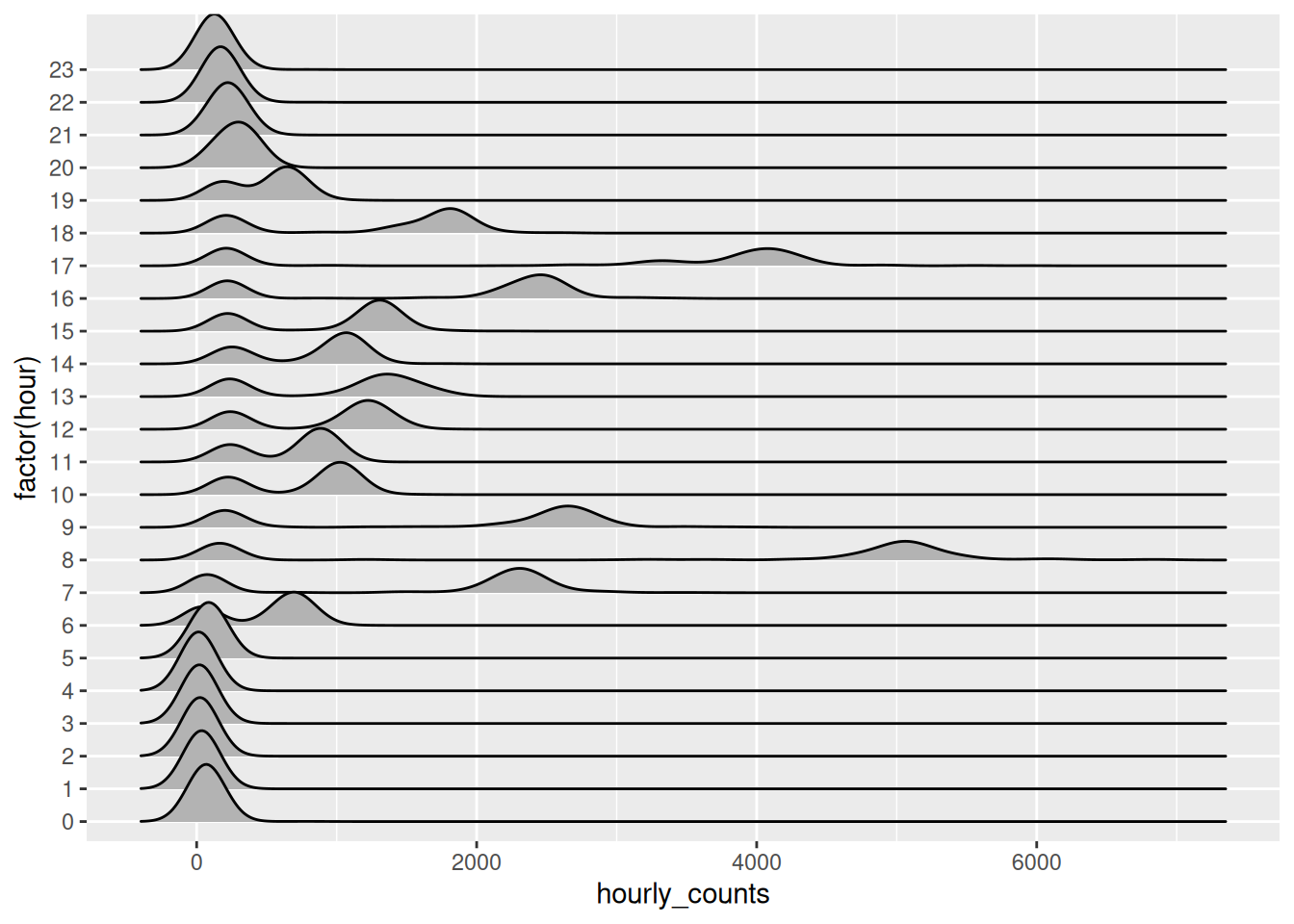

Twenty four density curves stacked vertically, one per hour of the day at Flagstaff Station, showing the two commuter peaks emerging and fading.
Figure 5.17

Twenty four distributions, one per hour, and you can read the day down the page. The two-humped hours are visible as two-humped curves.

Try that as twenty four boxplots and you get twenty four squashed boxes.

TipRead more

The classic demonstration that a summary can be confidently wrong is Anscombe’s quartet: four datasets with identical means, variances, correlations and regression lines, and four different pictures.

I worked it through the tidyverse here: Tidyverse Case Study: Anscombe’s quartet.

The punchline is in the base R helpfile’s own comment:

## Now, do what you should have done in the first place: PLOTS

Faceting answers “what does this place look like”. It can’t answer “compared to what”, because each panel only holds its own data.

The fix is to draw everything in grey underneath, then that panel’s own data on top. You can do it by hand, by giving one layer its own data = with the faceting column removed so it appears in every panel:

pedestrian_background <- pedestrian |>
        select(-sensor_name)

ggplot(pedestrian,
       aes(x = hour,
           y = hourly_counts)) +
        geom_point(data = pedestrian_background,
                   colour = "grey80",
                   alpha = 0.05) +
        geom_point(alpha = 0.05,
                   colour = "steelblue") +
        facet_wrap(vars(sensor_name))

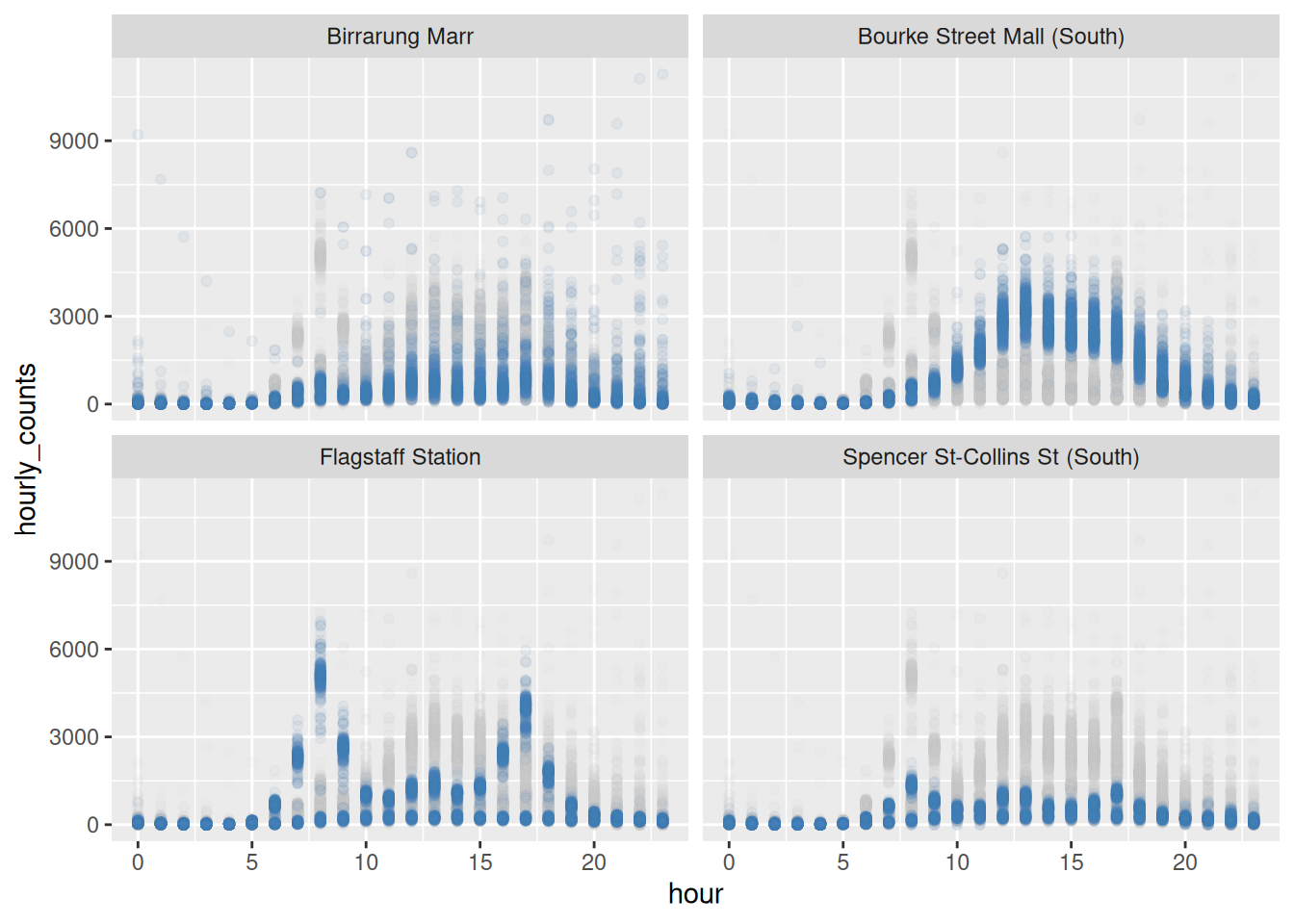

Four panels, each showing all the data in light grey with that panel's own sensor drawn over the top in blue.
Figure 5.18

Every panel now shows its own sensor against the shape of all four.

This is the same idea as gghighlight() above, and gghighlight will do the facet version for you. Add a facet and it redraws the whole dataset in grey behind every panel automatically:

pedestrian_hourly |>
        filter(day_type == "weekday") |>
        ggplot(aes(x = hour,
                   y = mean_count,
                   colour = sensor_name)) +
        geom_line() +
        gghighlight(use_direct_label = FALSE) +
        facet_wrap(vars(sensor_name))

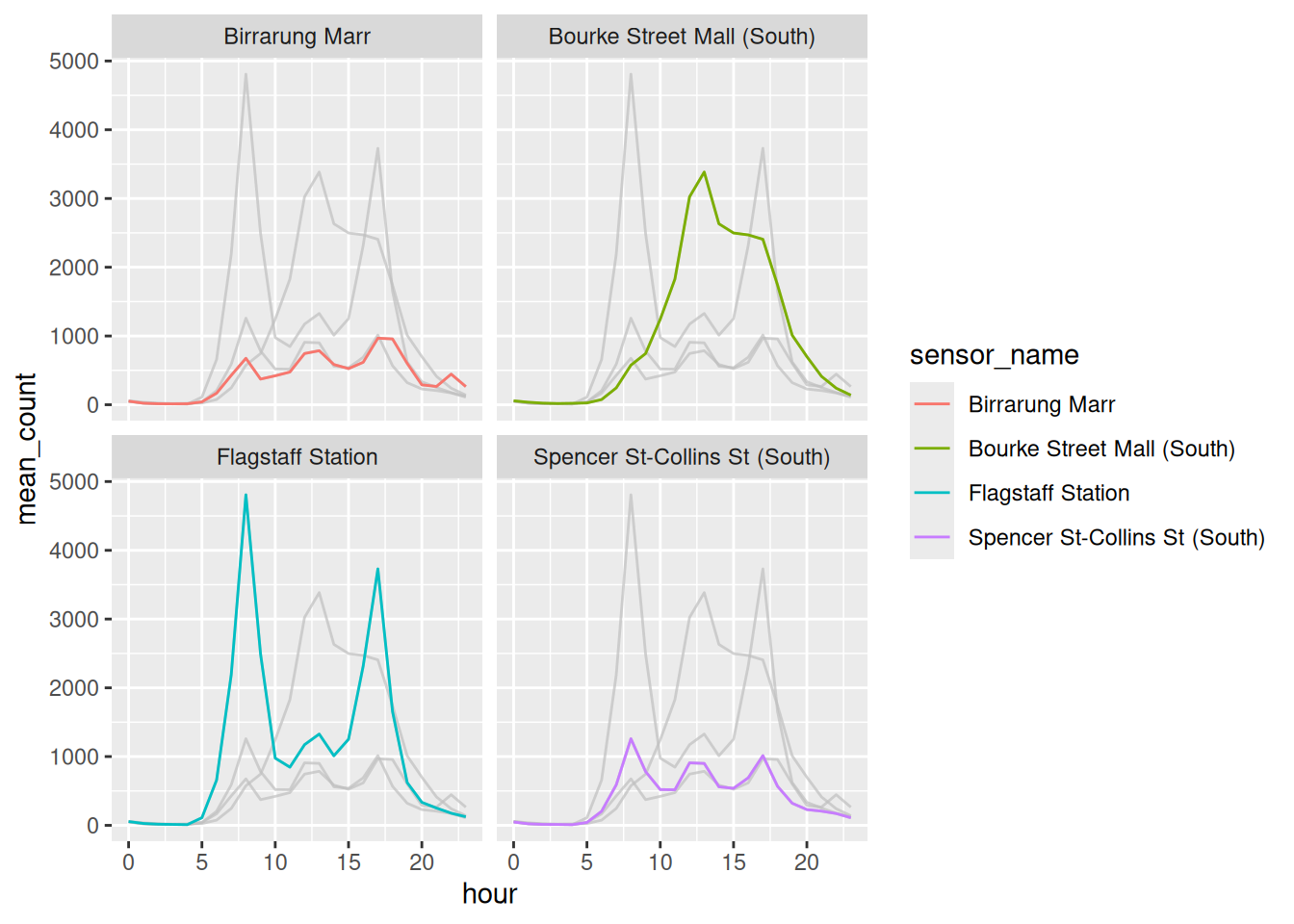

Four panels, one per sensor, each showing its own line in colour with the other three greyed out behind it.
Figure 5.19

No filter() on a background object, no second data = argument. Note there is no condition inside gghighlight() this time: with a facet, it highlights whatever belongs to each panel.

Grey for context, colour for the thing you mean. It’s the same move whether you write it yourself or let a package do it, and we come back to it as a design principle in Chapter 6.

NoteYour Turn
library(tidyverse)
library(naniar)
library(gghighlight)
library(ggridges)
library(ggrain)

  1. Sketch a violin of Birrarung Marr, given a park doesn’t care what day it is. Then draw it.

  2. Layer a boxplot inside the violin:

ggplot(pedestrian,
       aes(x = sensor_name,
           y = hourly_counts)) +
        geom_violin() +
        geom_boxplot(width = ___)
  1. Make a ridgeline of the four sensors instead of the hours. Which grouping suits ridgelines better?

Only open this if you’ve actually had a go.

1. One lump, low and wide. No commute means no second population, so there’s nothing for the boxplot to hide.

2. width = 0.1. You get the median and quartiles as numbers you can read, sitting inside the shape that tells you whether those numbers mean anything.

3. Hours, because there are 24 of them and they have an order. Ridgelines work when groups are many and sequential. With four unordered sensors, side by side violins are easier to compare.

Takeaways

  • A boxplot claims your data has one middle
  • When that’s false it hides the finding and calls it an outlier
  • Layer the points over the summary when you can afford the ink
  • Ridgelines for many ordered groups, violins for a few

5.4 To summarise

Three things to take out of this chapter.

  1. Non-data ink is not free, and colour is ink. If dropping it costs nothing, it was decoration.
  2. Too many points is a geom problem. alpha buys a little, geom_hex() solves it by counting.
  3. A summary is a claim about shape. Show the data on top of it and the claim has to hold up.

When a plot looks like a mess, don’t start styling it. Ask what is between the reader and the data, and take that out first.

Next up is where the eye goes: not what to take away, but what to make loud.

Links
