7  Making it land

Your plot is right. Now it has to survive leaving your screen, and end up in a paper, a slide, or a report where nobody’s there to explain it.

This chapter is the last mile: labels, themes, combining plots, and getting a file out that looks the way it did in RStudio.

We finish by turning the course into a checklist you can run on anything.

Overview

Duration 41 minutes

Questions

• When should I start polishing?
• What should the title say?
• How do I make every plot in a report match?
• How do I combine several plots?
• Why does the saved file look different to my screen?
• How do I critique a plot, including my own?

What you need this session

• A session of RStudio open
• The following packages installed

library(tidyverse)
library(naniar)
library(patchwork)

pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )

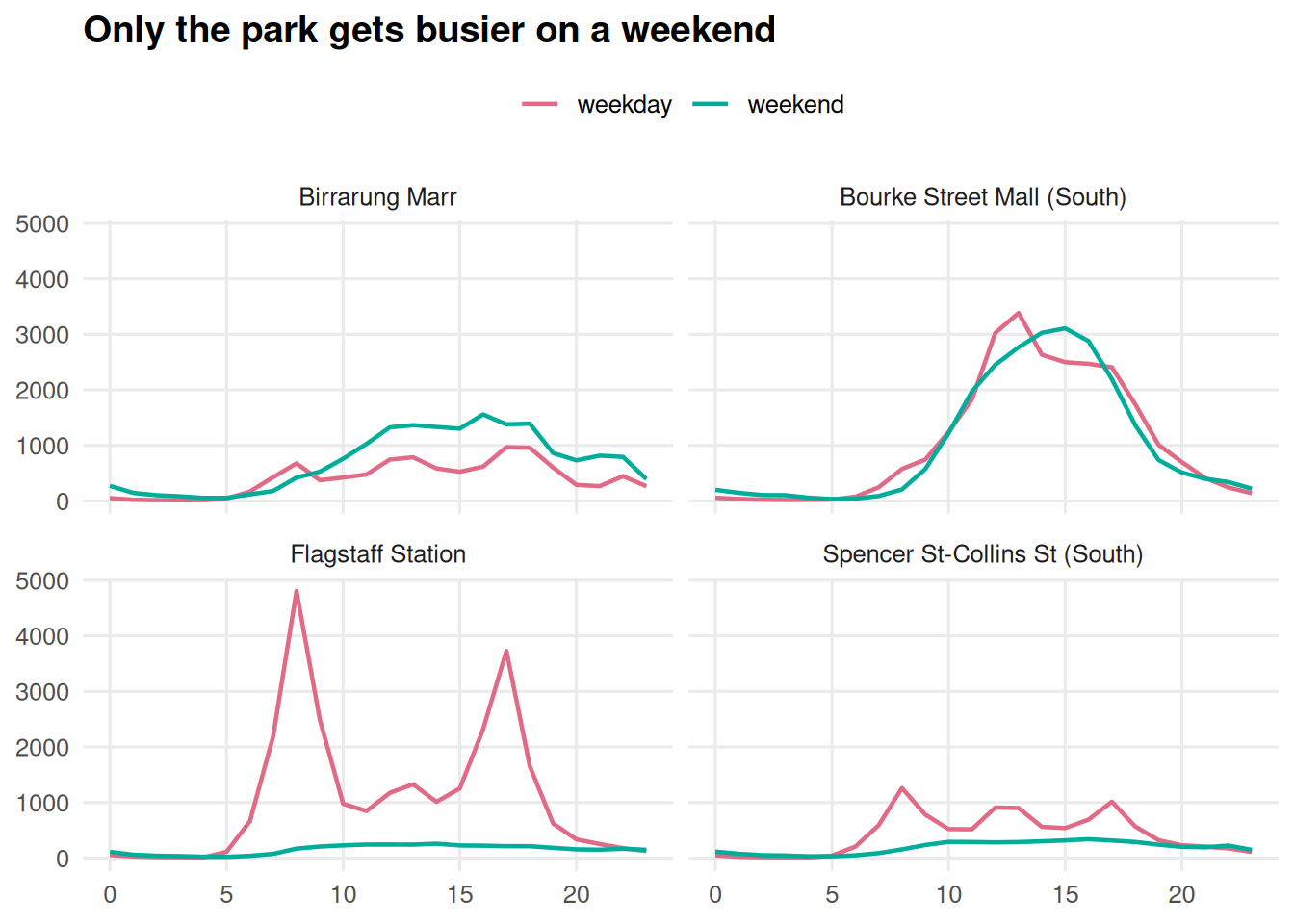

7.1 Polish last

The idea: polishing a plot you’re going to throw away is the most common way to waste an afternoon.

Everything here comes after Chapter 4, Chapter 5 and Chapter 6 have been answered. The order I work in:

1. labs()
2. colours with scale_colour_*()
3. a theme
4. move or remove the legend
5. ggsave()

Each step is cheaper to redo than the one before it.

Save the plot to an object first. Small habit, and from here everything is p + one thing.

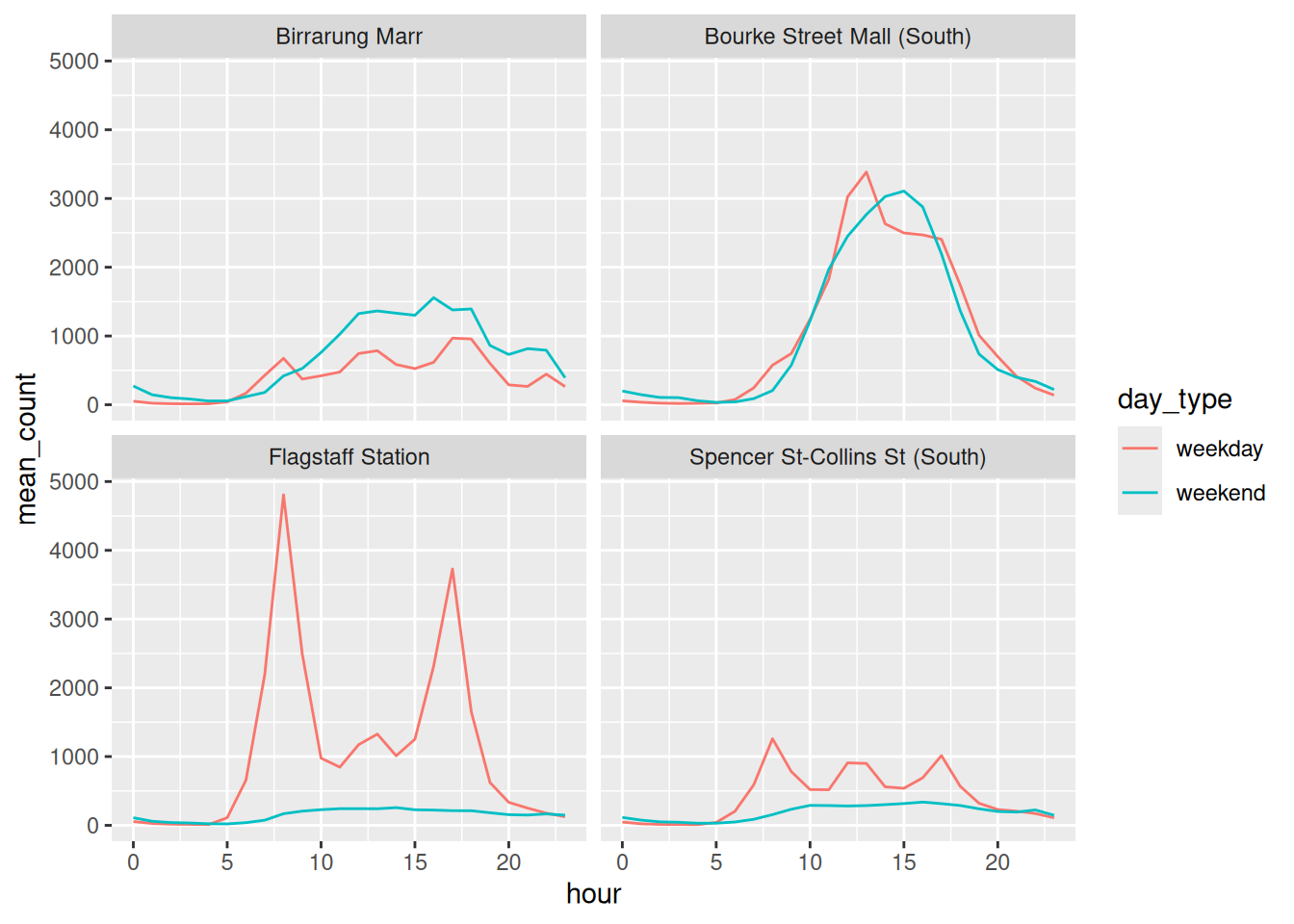

p <- ggplot(pedestrian_hourly,
            aes(x = hour,
                y = mean_count,
                colour = day_type)) +
        geom_line() +
        facet_wrap(vars(sensor_name))

p

Figure 7.1

7.2 Say the finding, not the variables

The idea: the title is the loudest thing on the plot. Spend it on what you found, not on what the columns were called.

Default labels are your column names. mean_count is not a sentence.

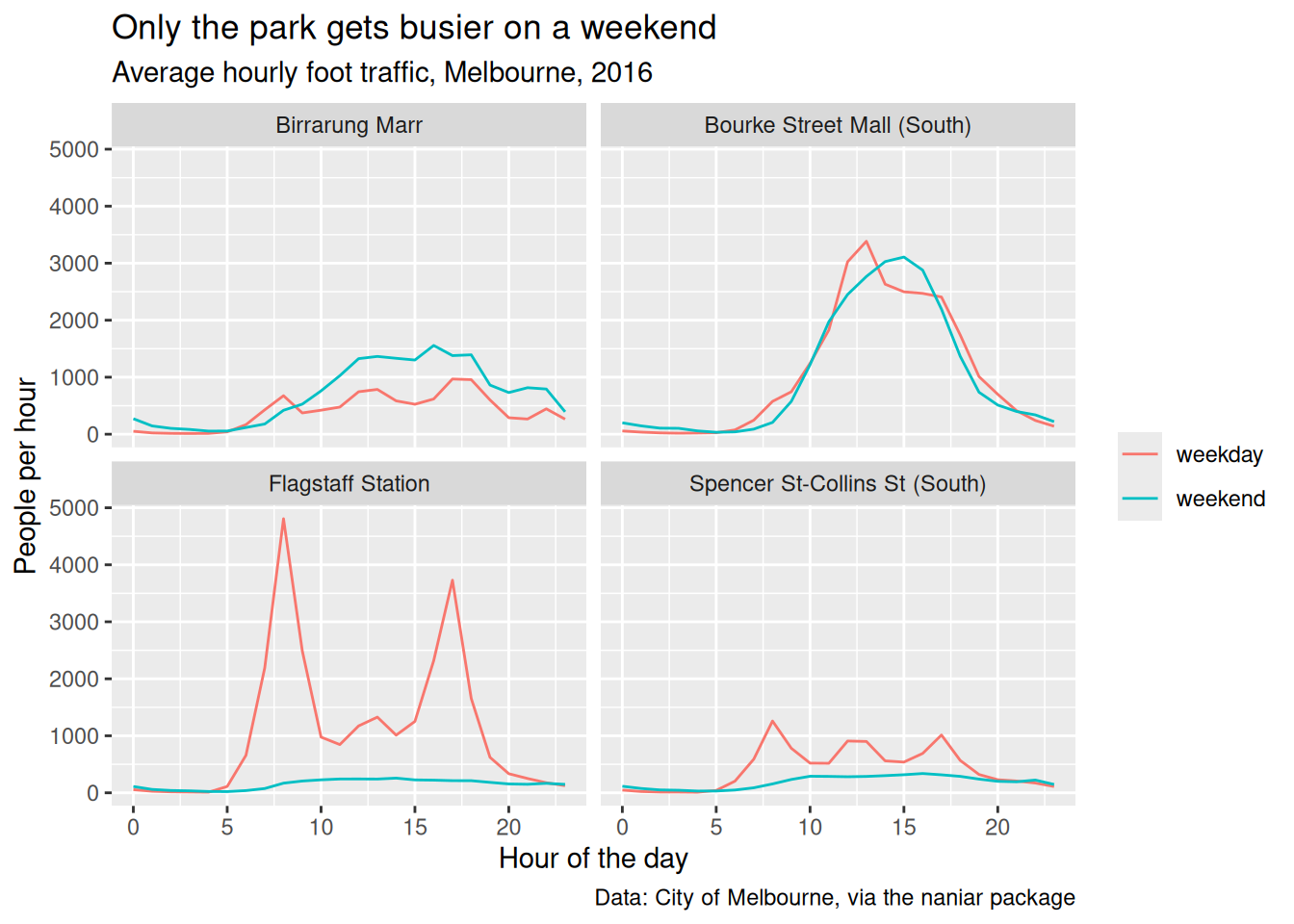

p_labelled <- p +
        labs(
                title = "Only the park gets busier on a weekend",
                subtitle = "Average hourly foot traffic, Melbourne, 2016",
                x = "Hour of the day",
                y = "People per hour",
                colour = NULL,
                caption = "Data: City of Melbourne, via the naniar package"
        )

p_labelled

Figure 7.2

Compare “Only the park gets busier on a weekend” with “mean_count by hour”. One of those tells you what you’re looking at.

If you can’t write that sentence, that’s worth knowing before you spend an hour on themes.

labs() names everything, not just the title

labs() is the one function for every piece of text on the plot. The arguments are the aesthetics, so anything you can map you can also label:

• title, subtitle, caption, and tag
• x and y, which default to your column names
• any aesthetic: colour, fill, shape, size, linetype, alpha

That last group is the one people miss. A legend title is not a special thing to be styled, it is just the label for whatever you mapped.

pedestrian_totals <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type) |>
        summarise(total = sum(hourly_counts, na.rm = TRUE), .groups = "drop")

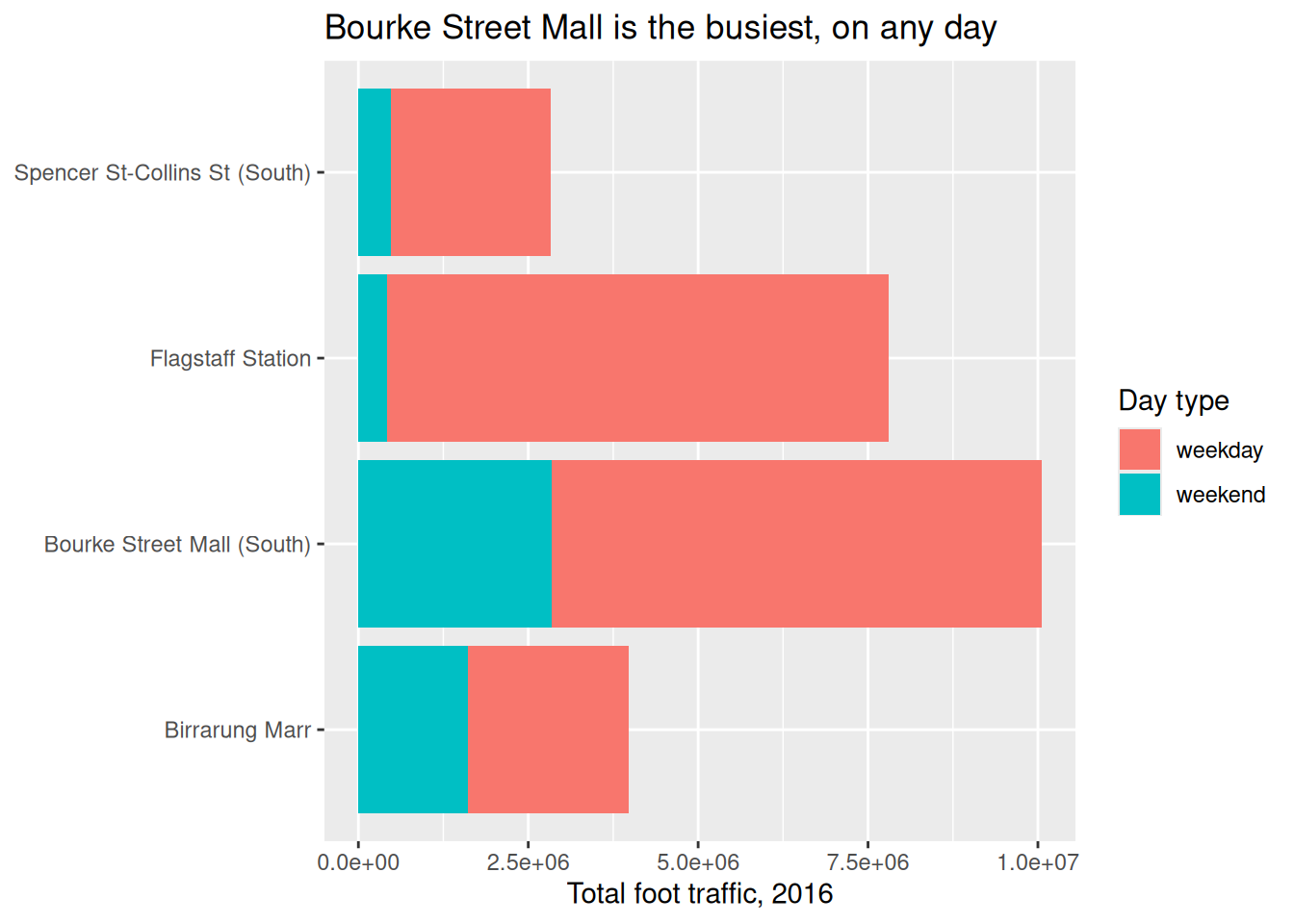

ggplot(pedestrian_totals,
       aes(x = total,
           y = sensor_name,
           fill = day_type)) +
        geom_col() +
        labs(
                title = "Bourke Street Mall is the busiest, on any day",
                x = "Total foot traffic, 2016",
                y = NULL,
                fill = "Day type"
        )

Figure 7.3

Three things happening there:

• fill = "Day type" retitles the legend. Had we mapped colour instead, it would be colour =. The argument name follows the aesthetic
• y = NULL removes the axis title. The sensor names are already on the axis, so a title saying “sensor_name” is ink with no job
• NULL removes, "" leaves an empty gap. Reach for NULL

If you map the same variable to two aesthetics, you have to name both or you get two legends:

labs(fill = "Day type", colour = "Day type")

Axes a human can read

The axis is text too, and the defaults are safe rather than readable.

• Breaks. ggplot2 picks 0 5 10 15 20 for hours, because it doesn’t know they’re hours. Nobody thinks in five hour blocks.
• Big numbers. Totals print as 2500000.
• Labels that collide. Long category names overlap.

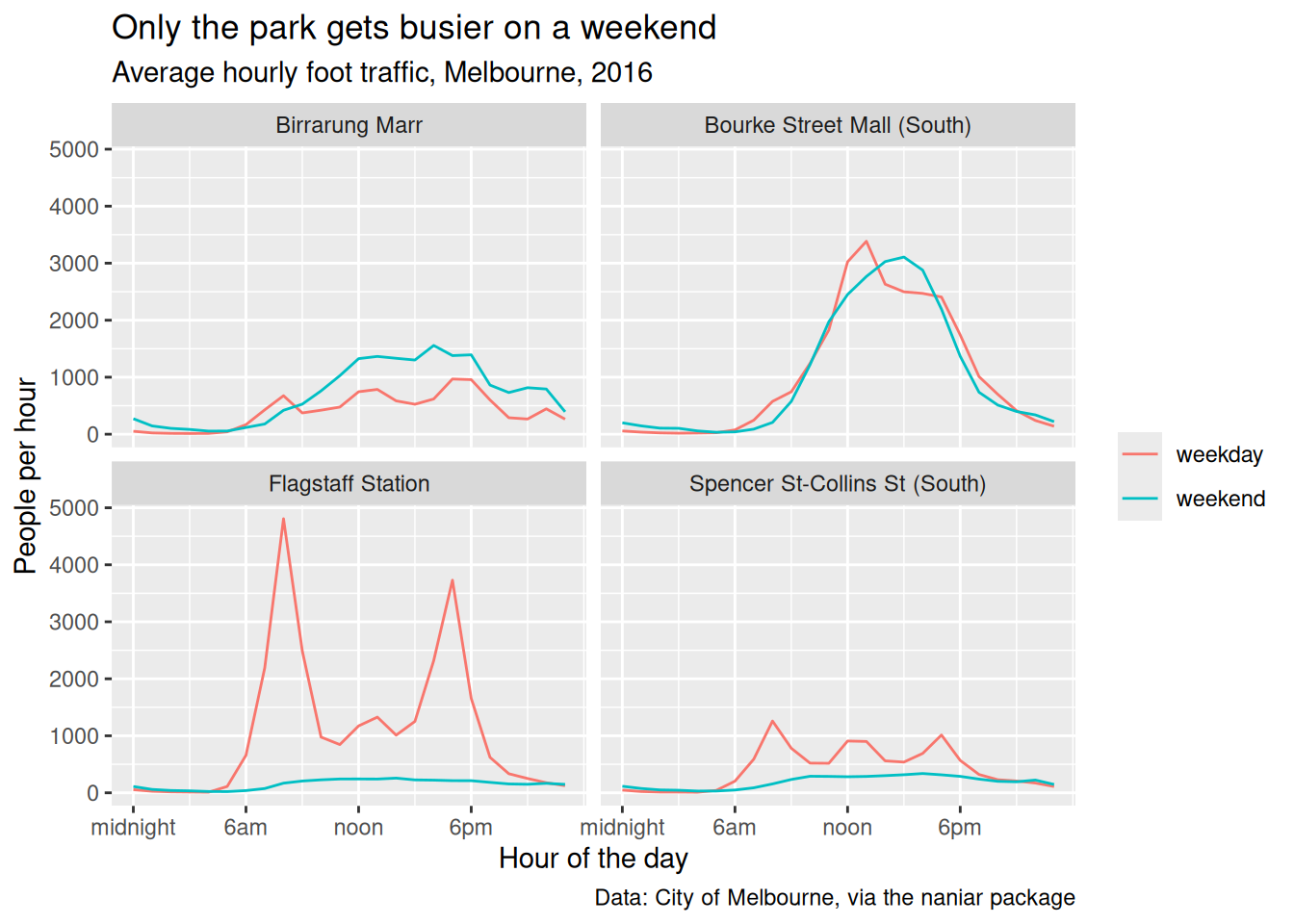

p_labelled +
        scale_x_continuous(
                breaks = c(0, 6, 12, 18),
                labels = c("midnight", "6am", "noon", "6pm")
        )

Figure 7.4

For the other two:

# 2500000 becomes 2,500,000
scale_y_continuous(labels = scales::label_comma())

# drop labels that would collide, as the plot resizes
scale_x_discrete(guide = guide_axis(check.overlap = TRUE))

# or stagger them onto two rows
scale_x_discrete(guide = guide_axis(n.dodge = 2))

check.overlap is the one worth knowing, because it thins labels automatically when the same figure goes into a slide and a paper at different widths.

Alt text

labs(alt = ) sets what a screen reader says.

p_alt <- p_labelled +
        labs(alt = "Four line charts of average hourly foot traffic in
             Melbourne in 2016. Flagstaff Station and Spencer St have large
             weekday commuter peaks that vanish at the weekend. Bourke Street
             Mall is the same on both. Birrarung Marr is the only sensor
             busier at the weekend.")

get_alt_text(p_alt)

[1] "Four line charts of average hourly foot traffic in\n             Melbourne in 2016. Flagstaff Station and Spencer St have large\n             weekday commuter peaks that vanish at the weekend. Bourke Street\n             Mall is the same on both. Birrarung Marr is the only sensor\n             busier at the weekend."

Say the finding, then the shape, then the axes. Not “a line chart of x against y”, which tells a screen reader user nothing they couldn’t guess.

Every figure in this book has alt text. Look at the source of any of them.

NoteYour Turn

TipSetup code

library(tidyverse)
library(naniar)
library(patchwork)
pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )
p <- ggplot(pedestrian_hourly,
            aes(x = hour,
                y = mean_count,
                colour = day_type)) +
        geom_line() +
        facet_wrap(vars(sensor_name))

p
p_labelled <- p +
        labs(
                title = "Only the park gets busier on a weekend",
                subtitle = "Average hourly foot traffic, Melbourne, 2016",
                x = "Hour of the day",
                y = "People per hour",
                colour = NULL,
                caption = "Data: City of Melbourne, via the naniar package"
        )

p_labelled

1. Write a title for a plot of your own that states its finding.

2. Add alt text and read it back:

my_plot <- my_plot +
        labs(alt = "___")

get_alt_text(my_plot)

3. Put comma separators on a y axis running into the millions.

TipAnswer

Only open this if you’ve actually had a go.

1. If you can’t write it, the plot probably isn’t finished. That’s the useful outcome, not a failure.

3. scale_y_continuous(labels = scales::label_comma()).

Takeaways

• The title is the loudest element. Spend it on the finding
• If you can’t state the finding, stop polishing and go back to the plot
• Alt text says the finding first, not the chart type

7.3 Themes, and making one yours

The idea: a theme is every non-data decision in one place. Wrap it in a function and every plot in the report matches.

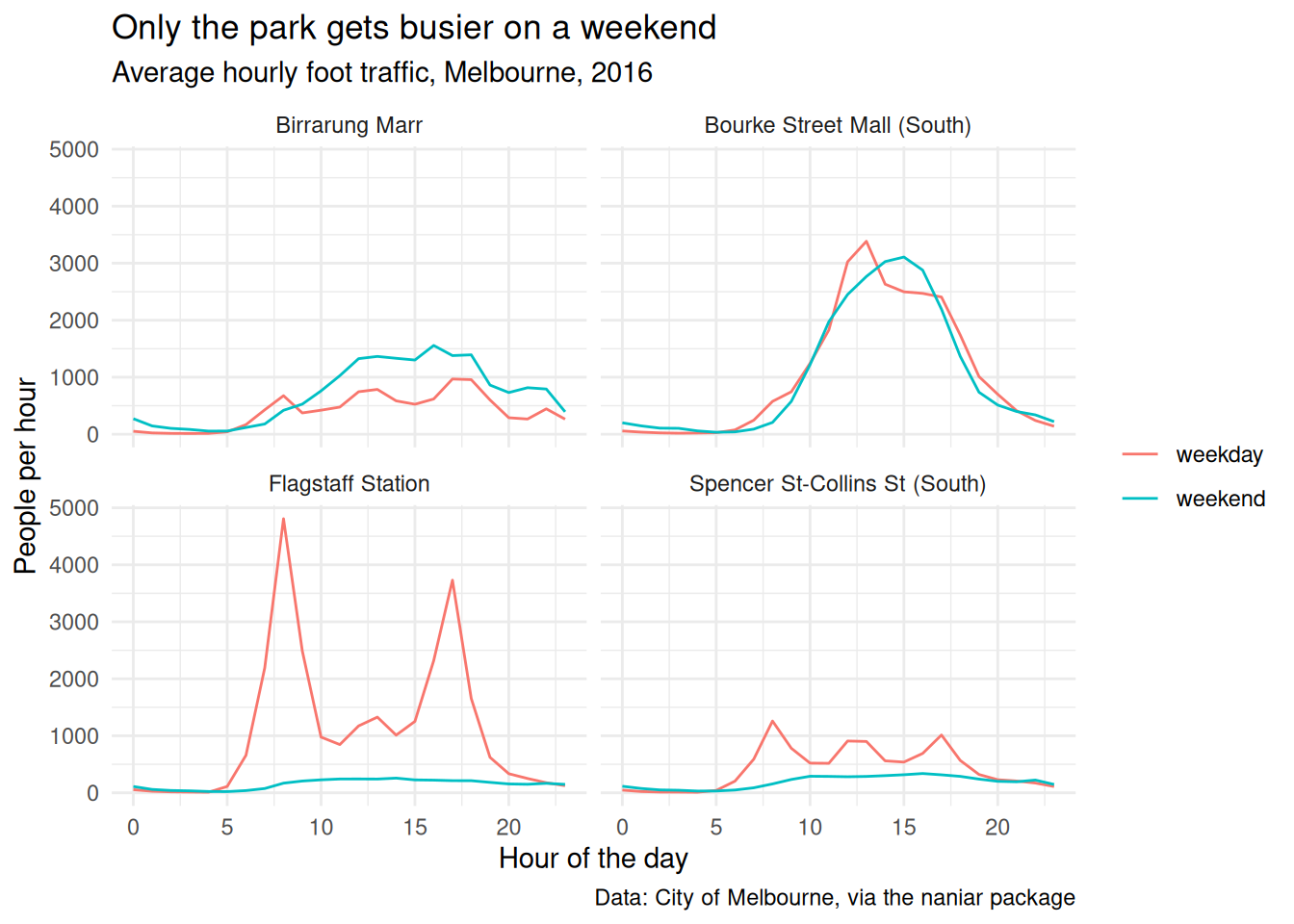

minimal

p_labelled + theme_minimal()

Figure 7.5

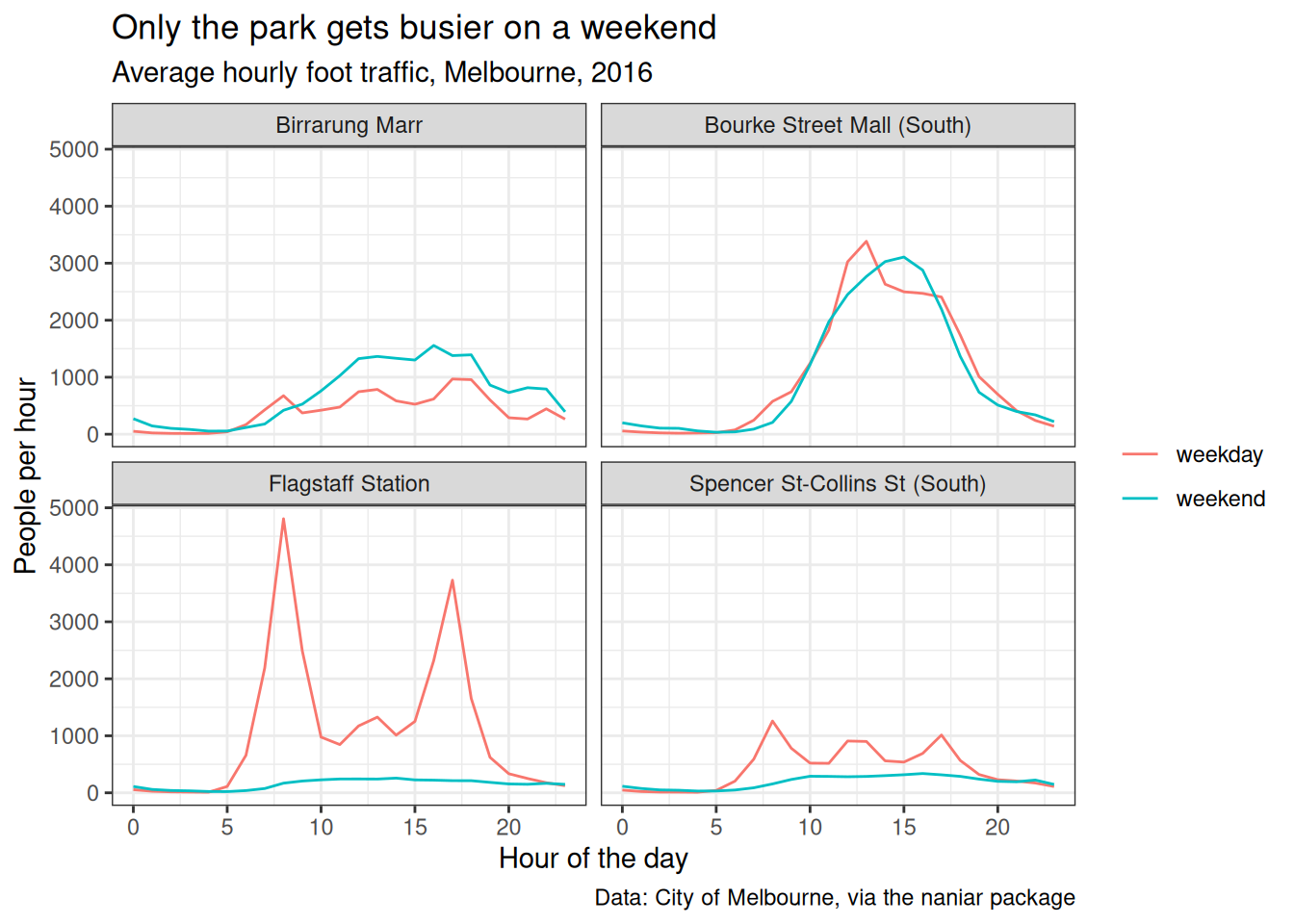

bw

p_labelled + theme_bw()

Figure 7.6

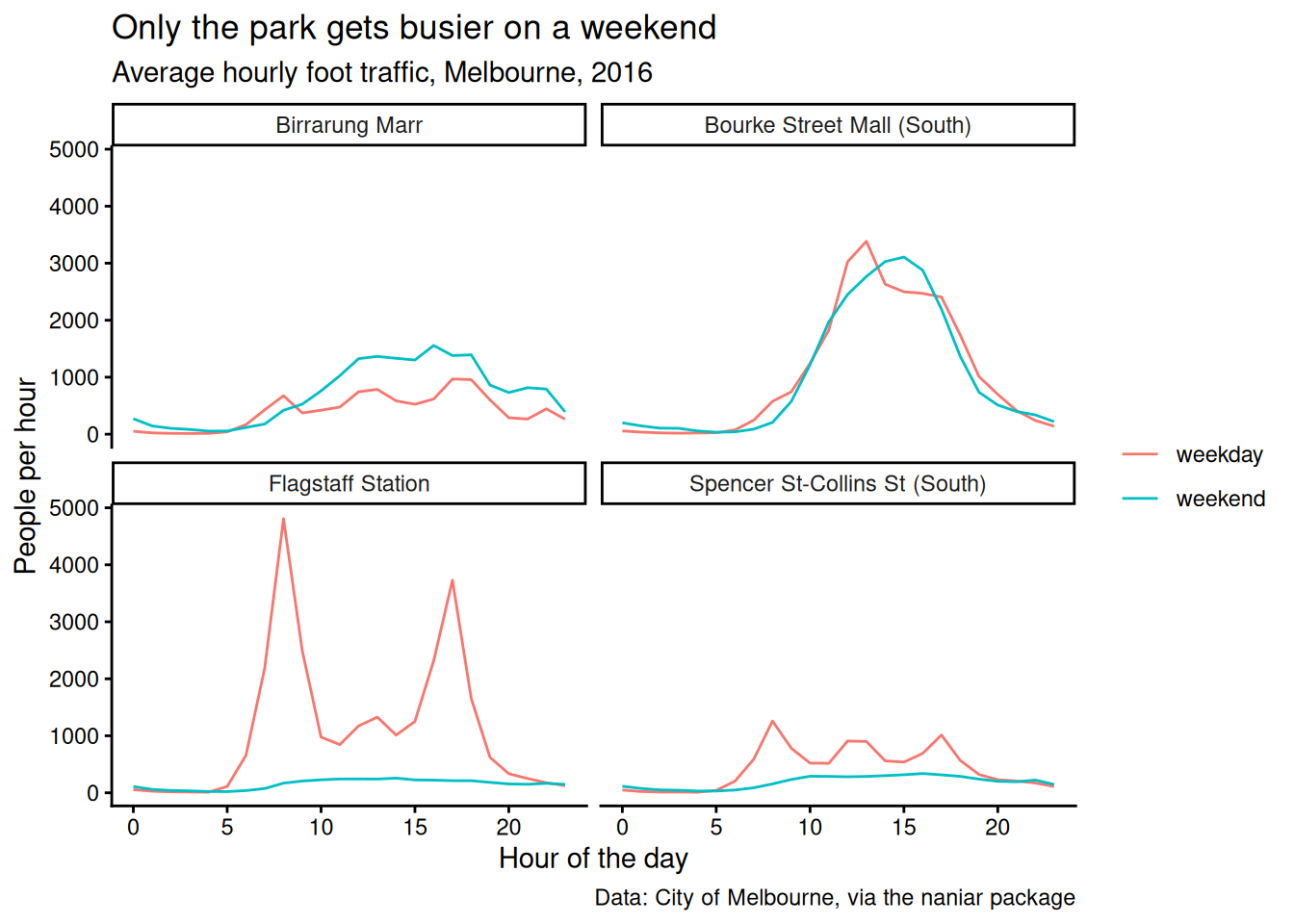

classic

p_labelled + theme_classic()

Figure 7.7

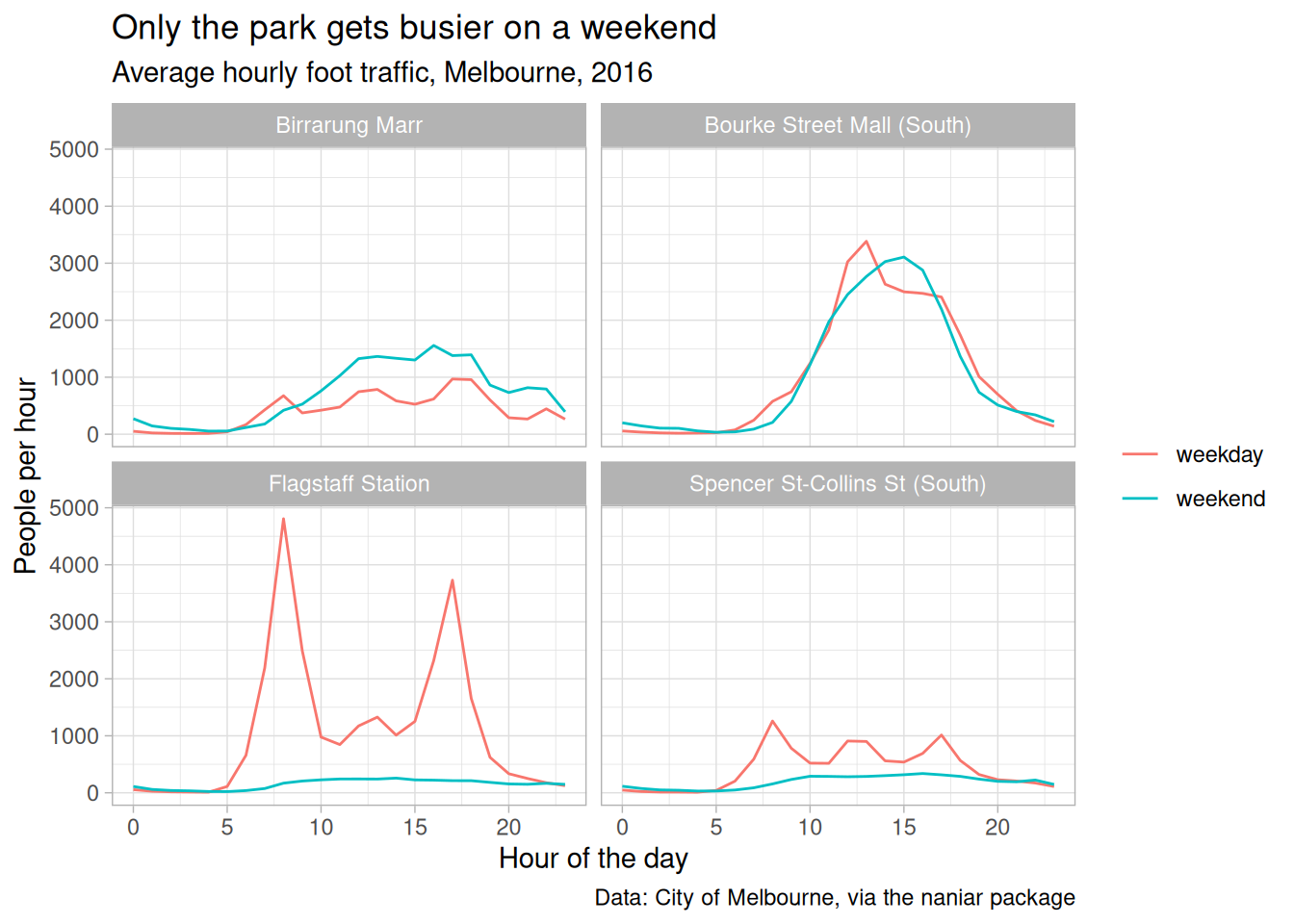

light

p_labelled + theme_light()

Figure 7.8

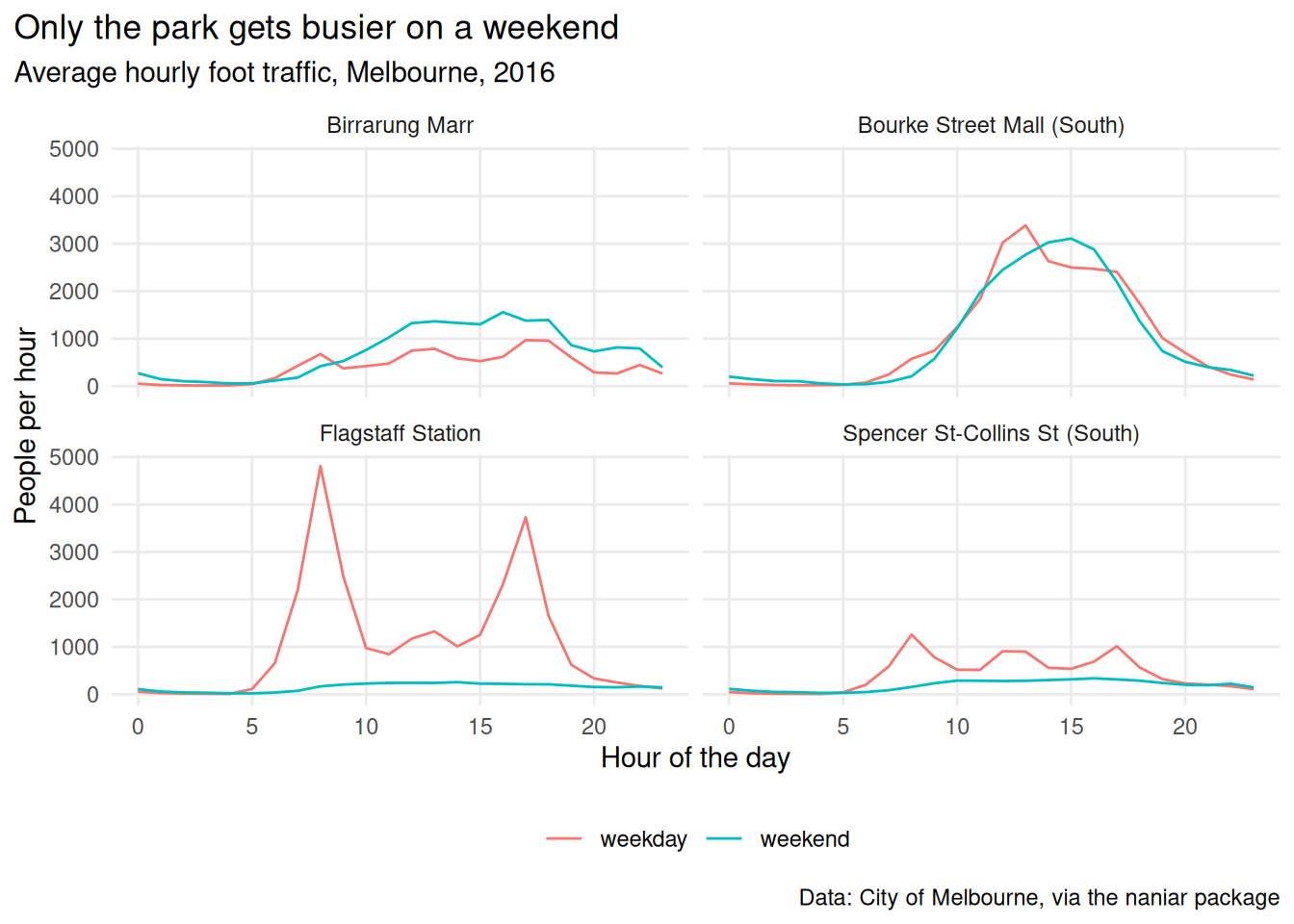

Then theme() for the details, and wrap the lot in a function:

theme_pedestrian <- function(...) {
        theme_minimal(...) +
                theme(
                        legend.position = "bottom",
                        plot.title.position = "plot",
                        panel.grid.minor = element_blank()
                )
}

p_labelled + theme_pedestrian()

Figure 7.9

Change the function once and every figure in the paper changes.

theme_set(theme_pedestrian()) at the top of a document does it for everything without you typing it each time.

TipGoing deeper: other people’s themes

ggthemes and hrbrthemes ship dozens of ready made themes, including deliberate imitations of the Economist, FiveThirtyEight and the Wall Street Journal.

They’re fun and worth ten minutes of play. The skill transfers either way, because they’re all just theme() calls somebody else wrote.

One catch: hrbrthemes wants specific fonts installed and complains loudly when they’re missing.

NoteYour Turn

TipSetup code

library(tidyverse)
library(naniar)
library(patchwork)
pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )
p <- ggplot(pedestrian_hourly,
            aes(x = hour,
                y = mean_count,
                colour = day_type)) +
        geom_line() +
        facet_wrap(vars(sensor_name))

p
p_labelled <- p +
        labs(
                title = "Only the park gets busier on a weekend",
                subtitle = "Average hourly foot traffic, Melbourne, 2016",
                x = "Hour of the day",
                y = "People per hour",
                colour = NULL,
                caption = "Data: City of Melbourne, via the naniar package"
        )

p_labelled

1. Write your own theme function. Change one thing you always change.

theme_mine <- function(...) {
        theme_minimal(...) +
                theme(___)
}

2. Try theme_minimal(base_size = 16). Where does the ... in your function send that?

3. Run theme_set(theme_mine()), then draw any plot. What happened?

TipAnswer

Only open this if you’ve actually had a go.

2. Straight through to theme_minimal(), which is why the ... is there. Without it your function would silently ignore every argument.

3. Every plot afterwards uses it, with no + theme_mine() needed. Handy for a report, confusing in a script somebody else reads.

Takeaways

• A theme is every non-data decision in one place
• Wrapping it in a function is what makes a report look like one document
• theme_set() when you don’t want to type it at all

7.4 Combining plots

The idea: patchwork combines finished plots with the operators you’d guess.

p_weekday <- pedestrian_hourly |>
        filter(day_type == "weekday") |>
        ggplot(aes(x = hour, y = mean_count, colour = sensor_name)) +
        geom_line() +
        labs(title = "Weekday")

p_weekend <- pedestrian_hourly |>
        filter(day_type == "weekend") |>
        ggplot(aes(x = hour, y = mean_count, colour = sensor_name)) +
        geom_line() +
        labs(title = "Weekend")

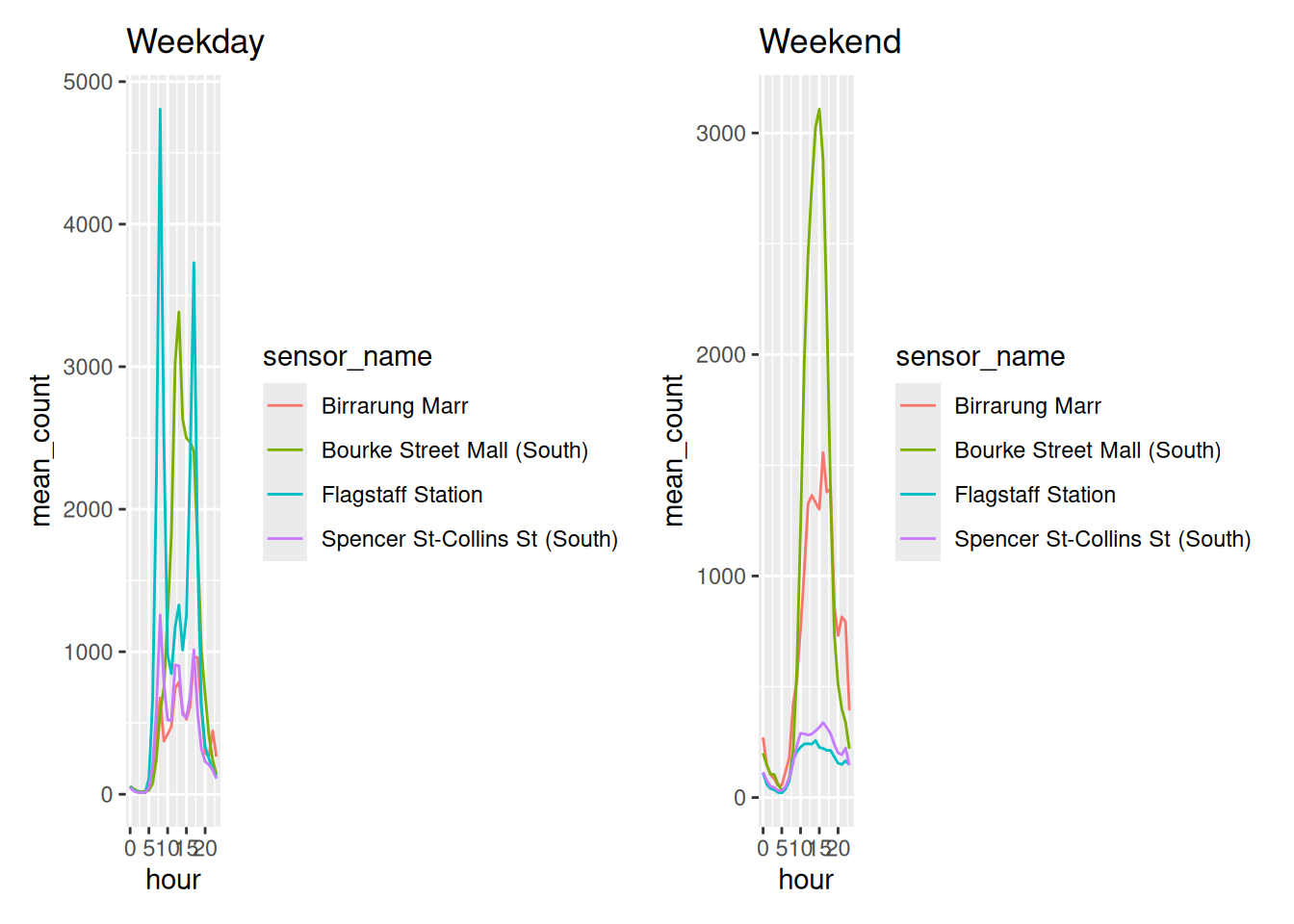

p_weekday + p_weekend

Figure 7.10

• p1 + p2 side by side
• p1 / p2 stacked
• (p1 + p2) / p3 nested

Two legends saying the same thing is the decoration Chapter 5 was about. plot_layout(guides = "collect") fixes it.

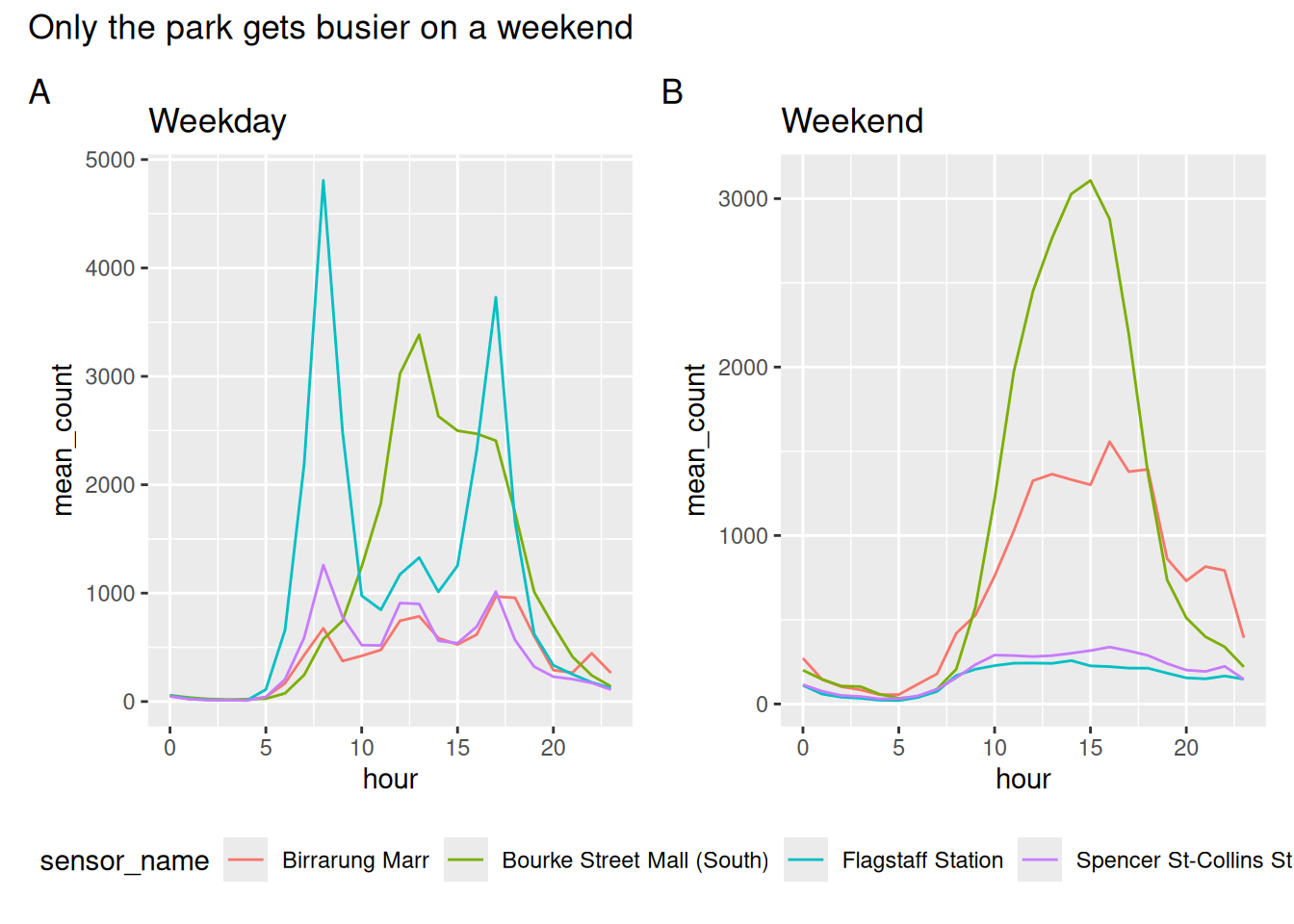

p_weekday + p_weekend +
        plot_layout(guides = "collect") +
        plot_annotation(
                title = "Only the park gets busier on a weekend",
                tag_levels = "A"
        ) &
        theme(legend.position = "bottom")

Figure 7.11

tag_levels = "A" labels the panels, which is what a journal will ask for.

NoteYour Turn

TipSetup code

library(tidyverse)
library(naniar)
library(patchwork)
pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )
p <- ggplot(pedestrian_hourly,
            aes(x = hour,
                y = mean_count,
                colour = day_type)) +
        geom_line() +
        facet_wrap(vars(sensor_name))

p
p_weekday <- pedestrian_hourly |>
        filter(day_type == "weekday") |>
        ggplot(aes(x = hour, y = mean_count, colour = sensor_name)) +
        geom_line() +
        labs(title = "Weekday")

p_weekend <- pedestrian_hourly |>
        filter(day_type == "weekend") |>
        ggplot(aes(x = hour, y = mean_count, colour = sensor_name)) +
        geom_line() +
        labs(title = "Weekend")

p_weekday + p_weekend

1. Build (p_weekday + p_weekend) / p. What do the brackets do?

2. Collect the legends and move them to the right instead of the bottom.

3. Rebuild the four sensor story from Chapter 4 as one figure.

TipAnswer

Only open this if you’ve actually had a go.

1. The brackets group the two plots so they share a row, and the third sits underneath across the full width. Without them you get three in a row.

2. Change legend.position to "right" in the & line. The & applies the theme to every plot in the patchwork, rather than just the last one, which is the bit that catches people.

Takeaways

• + for side by side, / for stacked, brackets to group
• plot_layout(guides = "collect") for one legend instead of three
• & applies a theme to the whole patchwork, + only to the last plot

7.5 Getting it out

The idea: the saved file does not look like the RStudio pane, and knowing why saves you an afternoon.

ggsave(
        filename = "pedestrian-weekend.png",
        plot = p_labelled,
        width = 8,
        height = 5,
        dpi = 300
)

Text does not scale with the plot. Make the canvas bigger and the text stays the same physical size, so it gets proportionally smaller.

# same plot, same dpi, same code
ggsave("narrow.png", p_labelled, width = 4, height = 3)
ggsave("wide.png", p_labelled, width = 12, height = 9)

Open both. The wide one has tiny text and nothing about the code changed.

TipGoing deeper: picking a shape

width = 8, height = 5 up there is not arbitrary. Most plots read better wider than they are tall, and a ratio that has been used for a very long time is the golden ratio, about 1.618 to 1.

So for a width of 8 inches:

8 / 1.618

[1] 4.944376

Which is where height = 5 came from. It is not a rule, and I do not think there is anything mystical about it. It is a good default when you have no reason to pick something else, and “no reason to pick something else” describes most figures.

Two cases where you should pick something else:

• A tall categorical axis. Twenty sensors on the y axis wants a tall figure, not a wide one
• A shared shape across a report. Consistency beats any individual ratio. Pick one and use it everywhere

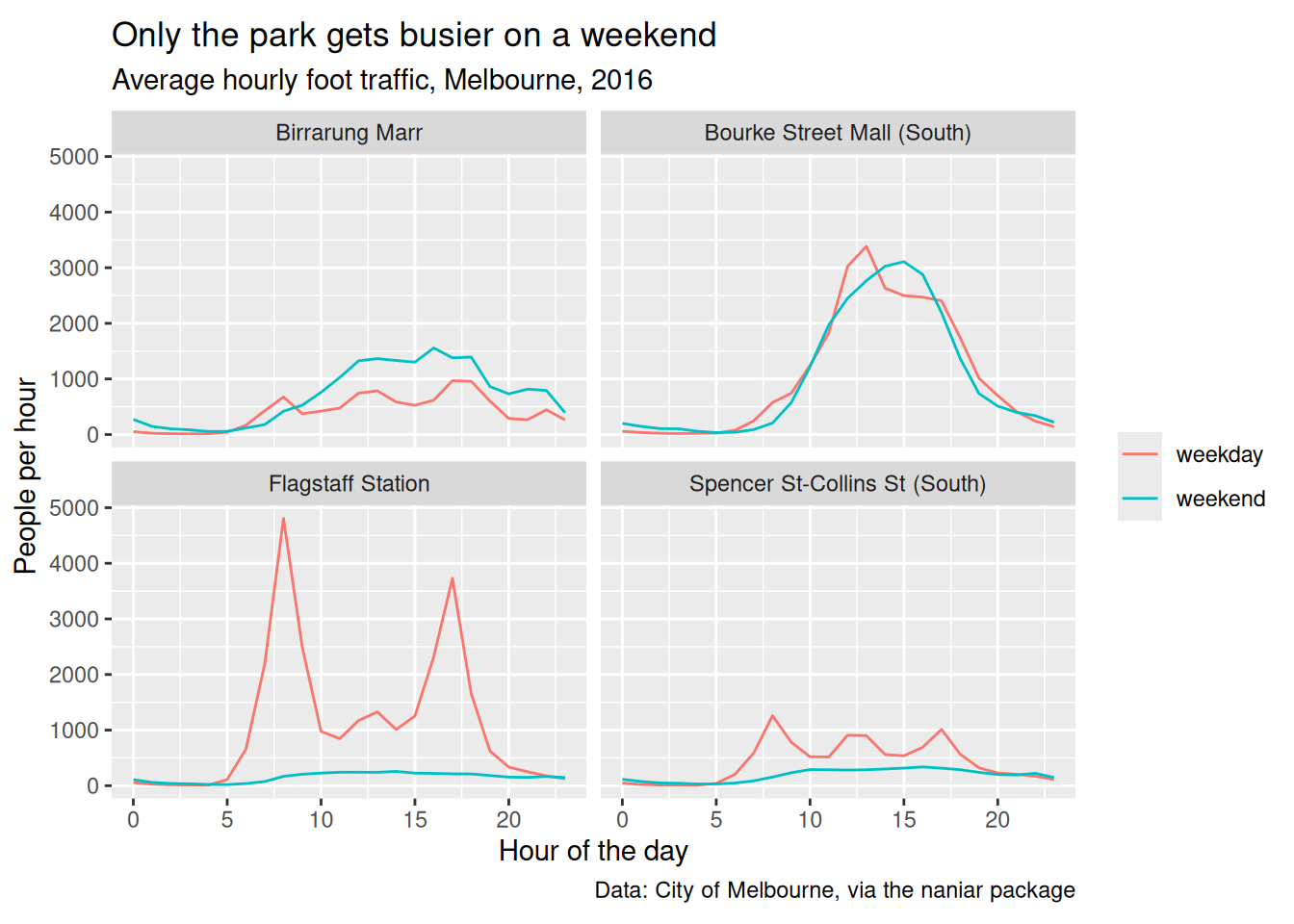

You can also set the ratio on the plot rather than the file, which keeps the panel itself golden however big the canvas is:

p_labelled +
        theme(aspect.ratio = 1 / 1.618)

Figure 7.12

TipGoing deeper: letting Quarto size your figures

Everything above is for a file you are writing yourself. For a figure going straight into a Quarto document, you usually do not call ggsave() at all: you set the size on the chunk and let Quarto save it for you.

#| fig-width: 8
#| fig-height: 5
#| fig-format: png
#| fig-dpi: 300

Or once, in the YAML, so every figure in the document matches:

---
format:
  html:
    fig-width: 8
    fig-height: 5
    fig-format: png
    fig-dpi: 300
---

That is the same width, height, format and resolution decision as ggsave(), made once for the document instead of once per figure. It is also why a plot can look different in your rendered report than it did in the RStudio pane: the document set a size and the pane did not.

TipRead more

There is a fuller treatment of the figure chunk options, including fig-align and fig-cap, in the Changing figures chapter of Quarto for Scientists.

Things worth knowing:

• ggsave() defaults to the last plot drawn, which bites once you’ve moved on. Pass plot = explicitly
• width and height are inches unless you set units =, and their ratio matters more than their size
• dpi = 300 for print, and it does nothing for a vector format
• the file extension picks the device
• vector (.pdf, .svg) for line art, raster (.png) for anything with thousands of overplotted points. A hex plot from Chapter 5 is small as a PDF; 35,152 points is not

NoteYour Turn

TipSetup code

library(tidyverse)
library(naniar)
library(patchwork)
pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )
p <- ggplot(pedestrian_hourly,
            aes(x = hour,
                y = mean_count,
                colour = day_type)) +
        geom_line() +
        facet_wrap(vars(sensor_name))

p
p_labelled <- p +
        labs(
                title = "Only the park gets busier on a weekend",
                subtitle = "Average hourly foot traffic, Melbourne, 2016",
                x = "Hour of the day",
                y = "People per hour",
                colour = NULL,
                caption = "Data: City of Melbourne, via the naniar package"
        )

p_labelled

1. Save the same plot at width = 4 and width = 12. Open both. What happened to the text?

2. Save one as .png and one as .pdf. Compare the file sizes.

3. You need a figure for a journal: one column wide, 300 dpi. What do you pass?

TipAnswer

Only open this if you’ve actually had a go.

3. Something like ggsave("fig1.pdf", plot = p, width = 3.5, height = 3, dpi = 300). One column is usually about 3.5 inches. Check the journal’s guide, they all publish one.

Takeaways

• Text doesn’t scale with the canvas, so size the canvas to its final home
• Always pass plot =
• Vector for line art, raster for dense point clouds

7.6 Four questions

The chapter titles of this course are a checklist. That was deliberate.

What am I comparing? (Chapter 4) Is the thing I want compared next to the thing I want it compared to?

What’s in the way? (Chapter 5) How much of this is not data, and can I see the data through it?

Where should the eye go? (Chapter 6) What does a reader meet first, and did I choose it?

Does it say its finding? (this chapter) If somebody reads only the title, do they get the point?

And a fifth, quieter one we’ve been doing since Chapter 1:

Did I draw it first?

NoteYour Turn

TipSetup code

library(tidyverse)
library(naniar)
library(patchwork)
pedestrian_hourly <- pedestrian |>
        mutate(day_type = if_else(
                condition = str_starts(week_day, "S"),
                true = "weekend",
                false = "weekday"
                )
        ) |>
        group_by(sensor_name, day_type, hour) |>
        summarise(
                mean_count = mean(hourly_counts, na.rm = TRUE),
                .groups = "drop"
        )

Run the four questions on a plot you’ve made before this course.

Then run them on a plot from this book. Mine included: there are plenty in here that would not survive all four.

7.7 Open practice and questions

Bring a plot you’re working on, or pick something from the ggplot2 extension gallery you’d like to try.

Links

• Quarto for Scientists
• ggplot2 extension gallery
